Siloking TrailedLine 4.0 Compact
Bale Chopper | Mixer / feeder
Compact all-round diet feeder with 7m³ to 14m³ container volume.
The Kverneland Siloking TrailedLine 4.0 Compact is particularly suited for use with confined buildings. TMR mixers also break up round bales without problems.
Description
The short chassis is particularly easy to maneuver. The drive and frame of this range are also designed for maximum continuous load. Standard equipment, such as the manual transmission from the Compact 10-T model and the ladder fixed to the frame, belongs to SILOKING's standard equipment. The TrailedLine 4.0 Compact models are also excellently suited for trouble-free breaking up of round bales.
The compact range is characterised by high manoeuvrability and ease of pulling. The models are equipped with SILOKING Data T as standard.
The through drive shaft guarantees smooth running of the machine for low wear and long life.
The safe access platform for viewing the mixing hopper is located on the hollow girder frame so that the weighing system is not affected when climbing up (e.g. when adding mineral feed). For accurate weighing, the load cells of this compact feed mixer are also mounted on the hollow girder frame below the mixing hopper, which considerably increases durability.
Features
Features

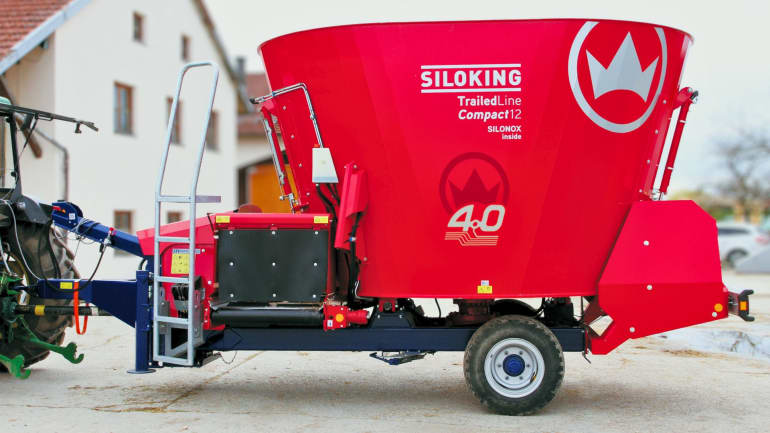

On the Kverneland SILOKING TrailedLine 4.0 Compact, the access platform is positioned to give the operator a safe view into the mixing hopper. This is useful during loading checks, ration preparation and when adding smaller components such as minerals.
The weighing system is protected by placing the load cells on the hollow girder frame below the hopper. This layout helps maintain weighing accuracy even when the operator climbs the platform or adds material manually. The result is safer access combined with reliable ration control.

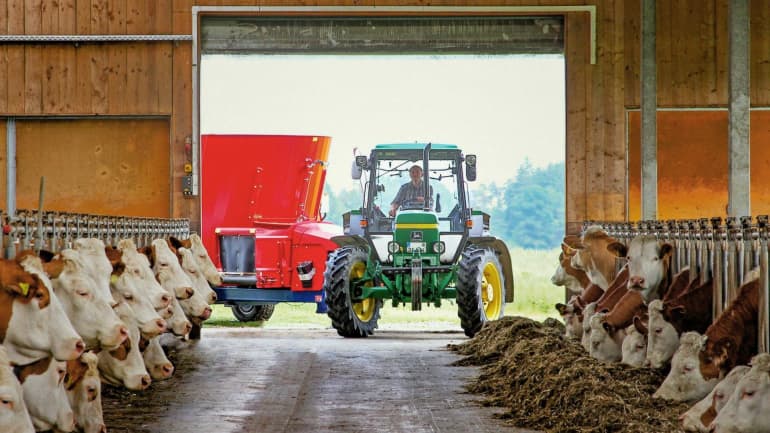

The Kverneland SILOKING TrailedLine 4.0 Compact is designed with compact dimensions for farms where space is limited. Its short chassis and reduced overall footprint make it easier to manoeuvre through narrow passages, position at the feed table and operate in restricted barn spaces.
The design keeps the benefits of a professional vertical mixer while reducing space and horsepower requirements. With the standard straw ring, the machine also handles long-fibre components and round bales reliably, making it a practical all-rounder for daily feeding.
Technical specifications
Technical specifications
Download brochure| Model | Compact 1612-12 | Compact 1612-13 | Compact 1612-16 | |
|---|---|---|---|---|
| Capacity (m³) | 12 | 13 | 16 | |
| Length (m) | 7.53 | 7.53 | 8.64 | |
| Width (m) | 2.55 | 2.55 | 2.55 | |
| Height (m) | 2.56 | 2.65 | 2.66 |
Technical specifications
Technical specifications
Download brochureModel |
Capacity (m³) |
Length (m) |
Width (m) |
Height (m) |
Compact 7 |
7 |
4.51 |
2.25 |
2.35 |
Compact 8 |
8 |
4.55 |
2.25 |
2.50 |
Compact 8-T |
8 |
4.67 |
2.40 |
2.46 |
Compact 9 |
9 |
4.71 |
2.40 |
2.63 |
Compact 10 |
10 |
4.75 |
2.40 |
2.78 |
Compact 10-T |
10 |
4.84 |
2.55 |
2.58 |
Compact 12 |
12 |
4.90 |
2.55 |
2.83 |
Compact 14 |
14 |
4.98 |
2.55 |
3.22 |
