Kverneland 3300
Mower | Mower Conditioner
Racecar technology for mower conditioners
Innovative QuattroLink suspension mower conditioners
The advantages of this Mower Conditioner
- Innovative QuattroLink racecar suspension concept
- Flexible suspension - 700mm total movement
- Full-width NonStop BreakAway protection
- Dual adjustment of conditioner hood
- Integrated parking feet for vertical storage
Description

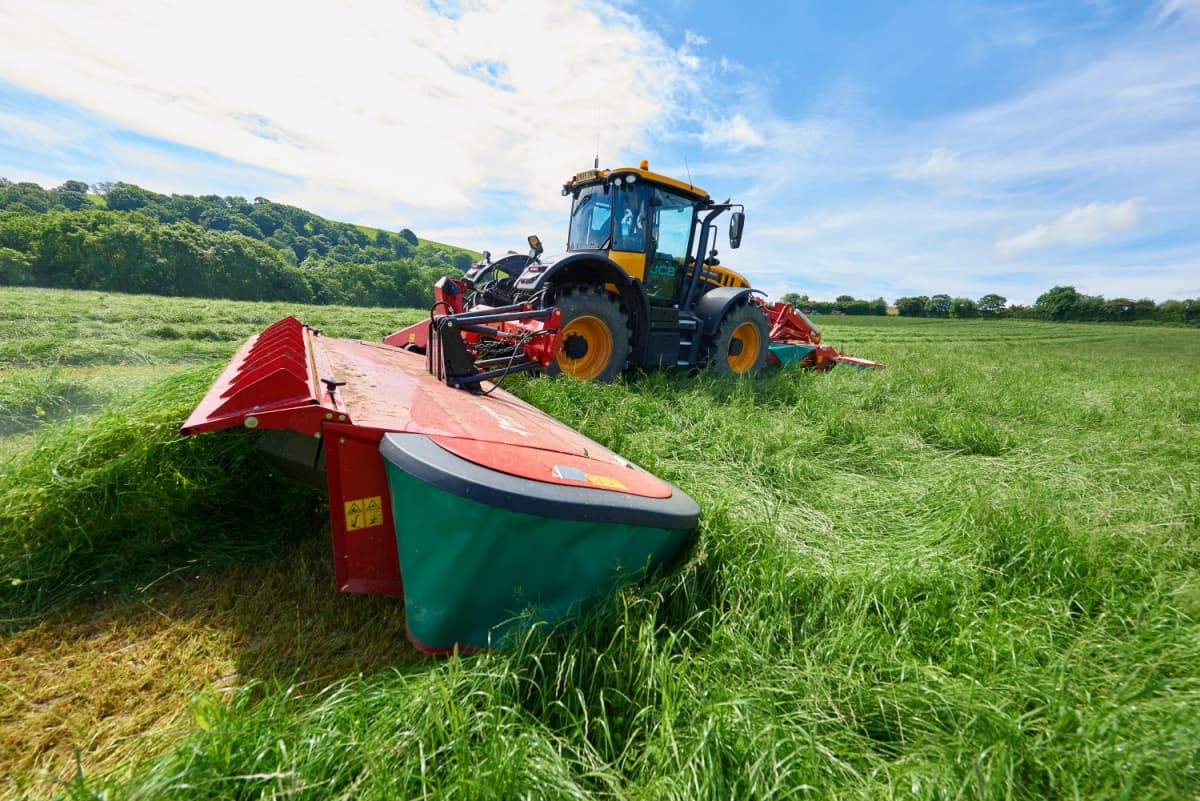

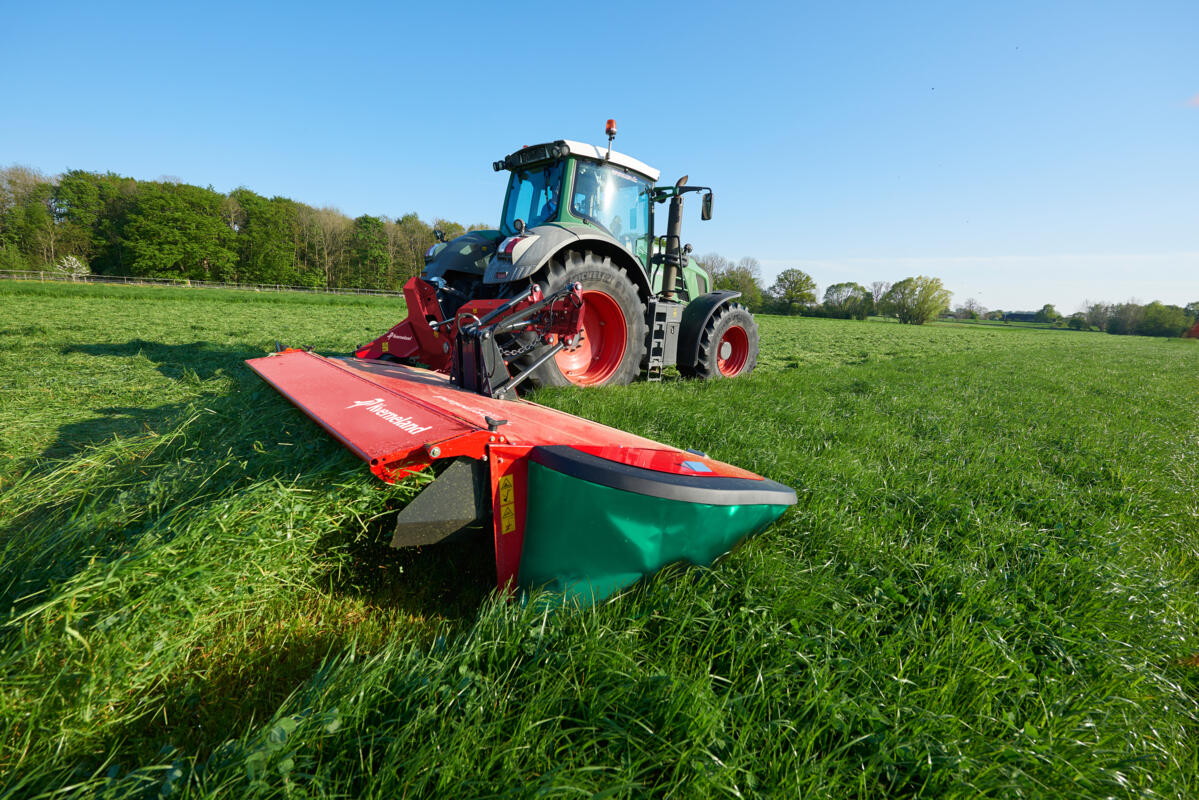

Kverneland 3300 MT/MR series, with working widths of 3.16 - 3.60m, is fitted with the Kverneland QuattroLink suspension and choice of SemiSwing steel tine or roller conditioner. The QuattroLink mowers have been designed for even more productivity and to handle tougher conditions than ever. With its´ accurate ground following ability and highly flexible working range, QuattroLink provides supreme capacity. The mowing unit is pulled by the 4-arm suspension, fitted onto a fixed carrying arm that allows the mowing unit to float independently over the field, adjusting precisely and instantly to any changes in ground contours. Vario model is fitted with hydraulic SideShift integrated into the carrying arm allowing each mowing unit to move 400mm.
Highlights
- Innovative QuattroLink racecar suspension concept.
- Flexible suspension – 700mm movements, 400mm upwards and 300mm downwards.
- Hydraulic setting of ground pressure.
- NonStop BreakAway protection across full working width.
- Minimum 500mm ground clearance during headland turns.
- Dual adjustment of conditioner hood - both front and rear end can be adjusted.
- Integrated parking feet for vertical storage.
- Vertical transport solution.
Features
Features
Racecar Technology Applied for Mower Conditioners

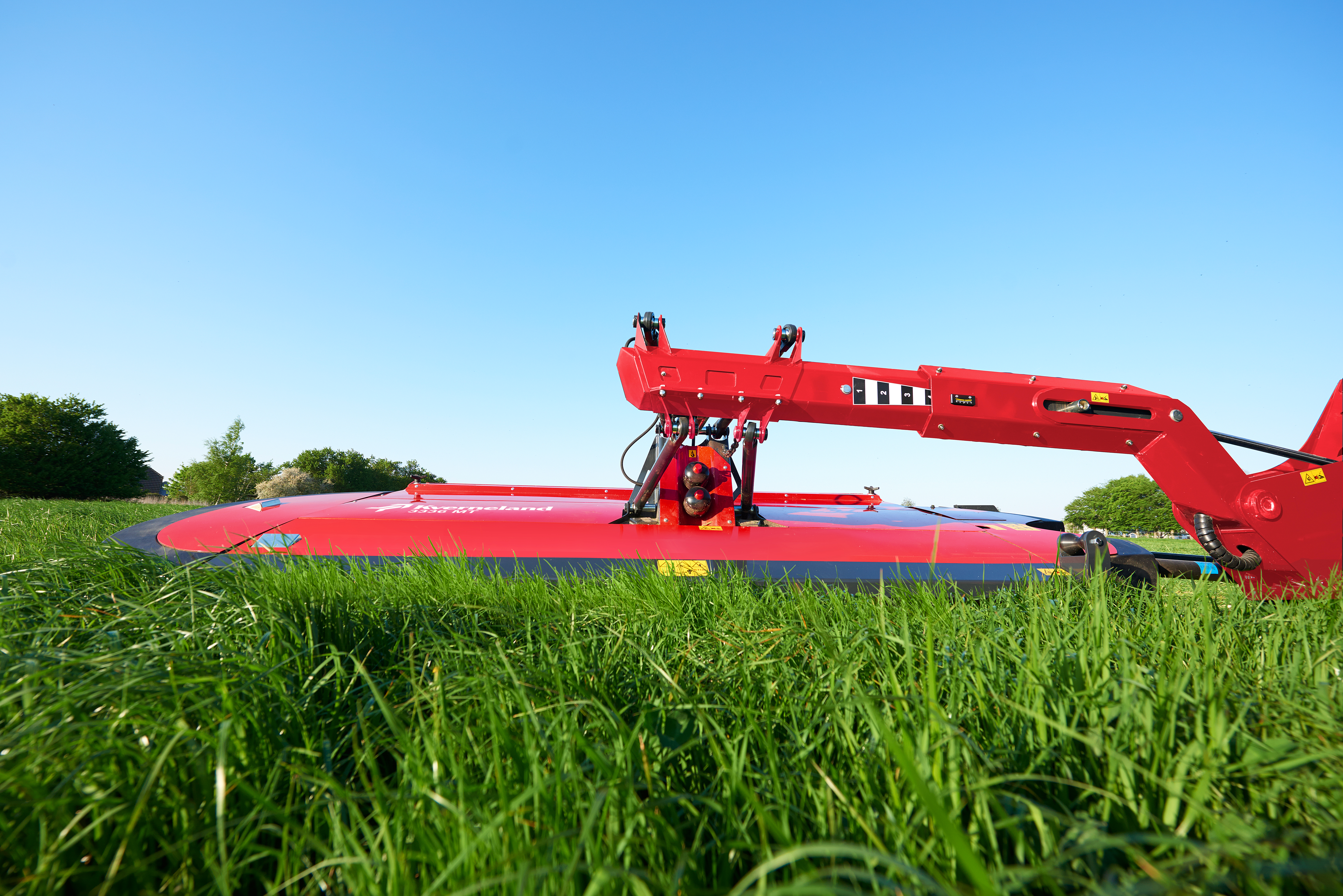

What makes the QuattroLink suspension unique? The mowing unit is pulled by four suspension arms fitted onto a fixed carrying arm that allows the mowing unit to float independently over the field, adjusting highly accurately and instantly to any changes in ground contours.
No Compromises on Flexibility
The mowing pattern is extremely flexible with a vertical working range of 700mm up and down and a transverse working range of 30°. The 4 arm suspension concept ensures constant ground pressure during working operations.
How You Will Benefit from QuattroLink
Like a race car you want better tracking, ability to go at faster speed and adjust instantly to changing field conditions when operating your mower conditioner. These are the main benefits you will experience when running the kverneland 3300 series and 53100 MT Vario. The four suspension arms provide the mowing unit with an exceptional flexibility in adapting instantly to demanding ground contours inviting for higher speed and more productivity.
Our NonStop BreakBack system just got even better. With the new QuattroLink suspension this system now offers protection across the full working width of the mower, including the part closest to the tractor. There are no limiting factors on the inside part of the mower, giving the driver true peace of mind. When hitting an obstacle in the field, the mowing unit will instantly move backwards and up, and then return to the original position.
Hydraulic Adjustment of Overlap
Kverneland 3336 MT Vario and 53100 MT Vario are fitted with hydraulic SideShift integrated into the carrying arm allowing each mowing units to move 400mm. To easily compensate for changing field conditions, the adjustable overlap is designed as a telescopic arm, directly into the suspension.
Ground Pressure Remains Constant
During mowing operation the carrying arm always remains even to the ground, giving the mowing unit the freedom to instantly compensate and float across uneven ground contours. The true benefit of the suspension concept is that even though overlap is changed, the chosen ground pressure remains the same.

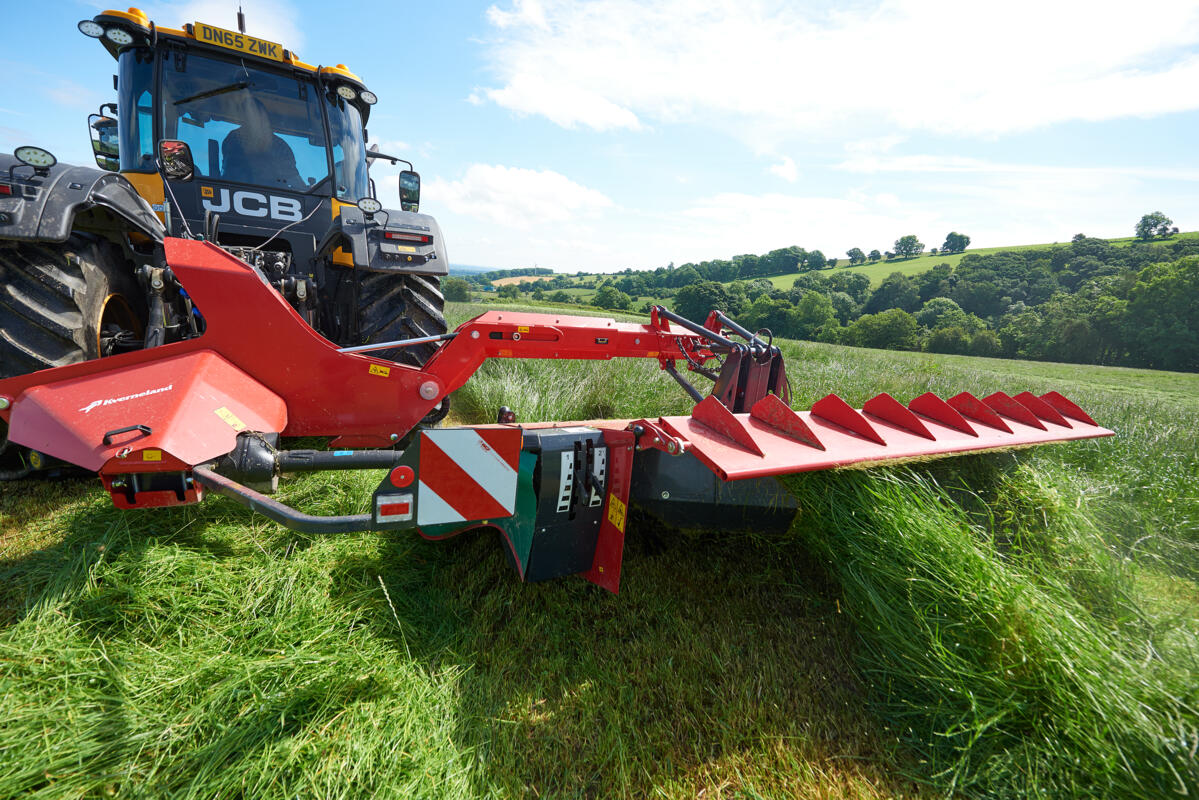

Swath Plates Automatically Expand
Swath plates automatically expand when being slided inwards to support efficient and accurate swathing.
Easy Change-Over for Widespreading
Changing from swathing to widespreading is virtually a one minute job. The swath plates are easily slided to the side and the FlipOver widespreading vanes are turned 180°. No tools are required.

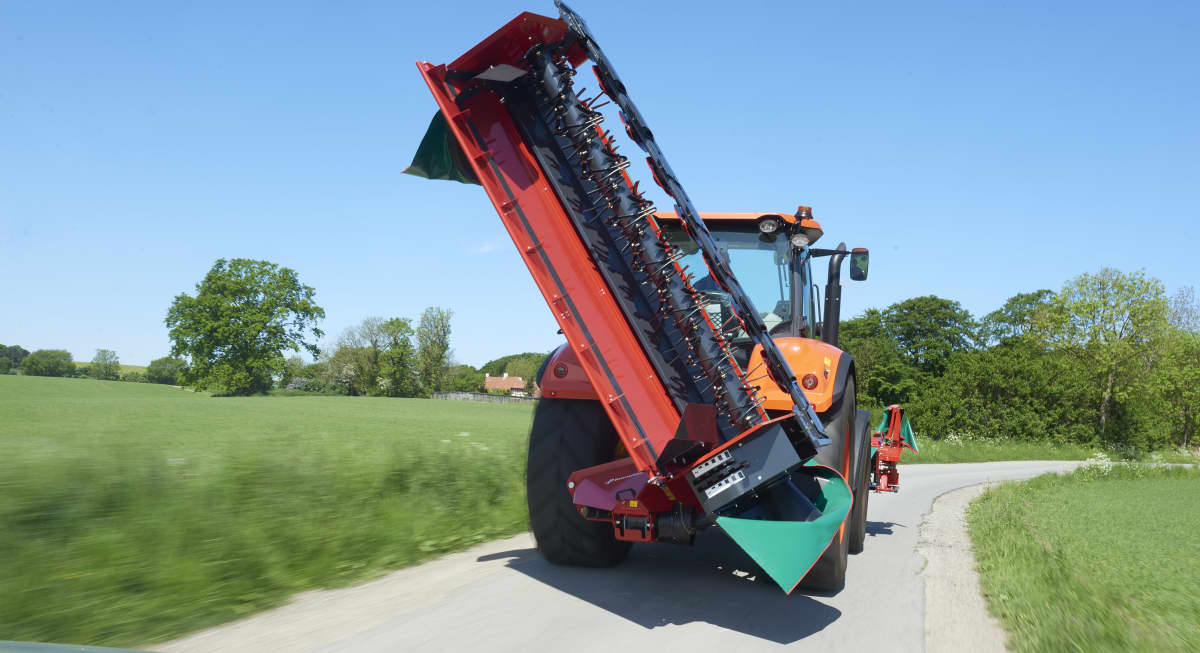

Vertical Transport Position
For transport the mower folds into a compact position well behind the tractor. The folding design ensures that the weight is distributed evenly, with the weight of the mower close to the tractor. Transport height is well below 4.00m.
Parking, Safe and Sure-Footed
With the integrated parking device, storage of the machine is made easy and convenient, requiring a minimum of space during winter storage. The mower is firmly parked on strong and stable parking foot, bringing total height below 4.00m.
Even More Efficient Conditioning
The new conditioner plate can be adjusted at both front and rear ends to customize the conditioner to crop intensity. The front end is adjusted separately to suit the crop intensity, even for massive crop, to avoid any blockages. Rear end is adjusted to ensure smooth and efficient crop flow into swaths or wide wide spreading.
Steel Tine Conditioner
Utilizing centrifugal force is what makes the Kverneland SemiSwing conditioner stand out among other conditioning systems. It offers an aggressive conditioning effect while still offering excellent tine protection and virtually no wear and tear. During operation tines will stay in a fixed position, providing full conditioning with minimum wear.
The Kverneland 3300 series provides generous clearance across the complete cutterbar, including the inside area. When lifting the mower on headlands, the mowing unit is raised and the carrying arm is tilted to a 10° angle. This provides the Kverneland 3000 series with a level ground clearance of minimum 500mm across the full working width. When lowing the mowing unit the carrying arm is lowered evenly without one side touching the ground before the rest of the mower, avoiding unnecessary stress and wear on the mower
Even More Efficient Conditioning
The new conditioner plate can be adjusted at both front and rear ends to customise the conditioner to crop intensity.
The front end (1) is adjusted separately to suit the crop intensity, even for massive crop, to avoid any blockages.
Rear end (2) is adjusted to ensure smooth and efficient crop flow into swaths or widespreading.
Technical specifications
Technical specifications
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| Model | 3332 MT | 3332 MR | 3336 MT | 3336 MT Vario | |
|---|---|---|---|---|---|
| Conditioner type | SemiSwing | Roller | SemiSwing | SemiSwing | |
| Working width m(ft) | 3.16(10'4") | 3.16(10'4") | 3.60(11'8") | 3.60(11'8") | |
| Transport width m(ft) | 3.00(9'8") | 3.00(9'8") | 3.00(9'8") | 3.00(9'8") | |
| PTO (rpm) | 1000 | 1000 | 1000 | 1000 | |
| PTO power req. min (kW/hp) | 66/90 | 66/90 | 90/120 | 90/120 | |
| Number of discs/knives | 8/16 | 8/16 | 9/18 | 9/18 |
Unable to load the table
Technical specifications
Technical specifications
Download brochureWorking Width |
No. of Discs |
Conditioner |
|
3336 MT Vario |
3.60m |
9 round discs |
SemiSwing steel tines |
Product FAQ`s
The Kverneland 3300 series rear-mounted mower conditioner requires at least 90 hp for the 3332 MT and 3332 MR, and 120 hp for the 3336 MT and 3336 MT Vario. All models operate at 1,000 PTO rpm. Ask your Kverneland dealer to confirm linkage capacity, hydraulics, lifting capacity, axle loads, and ballast.
Choose a Kverneland 3332 rear-mounted mower conditioner for a 3.16 m working width and minimum PTO power of 90 hp. Choose a Kverneland 3336 for 3.60 m and 120 hp minimum. The right Kverneland 3300 series model depends on tractor capacity, field access, required output, crop type, and front-mower use.
The Kverneland 3300 series rear-mounted mower conditioner offers SemiSwing steel-tine conditioning on MT models and roller conditioning on the 3332 MR. SemiSwing provides aggressive, full-width conditioning and crop transfer. The roller conditioner gently cracks stems while helping preserve the nutritious leaves of fragile crops such as alfalfa and clover.
The Kverneland 3336 MT Vario rear-mounted mower conditioner adds 400 mm of hydraulic SideShift to the Kverneland 3300 series. This allows the operator to adjust mower position and overlap when working with a front mower, around curves, or on slopes. Ground pressure remains consistent during adjustment, supporting accurate ground following and complete crop coverage.
Yes. The Kverneland 3336 MT Vario rear-mounted mower conditioner provides 400 mm of hydraulic SideShift, allowing overlap to be adjusted during operation. This helps the Kverneland 3300 series match a front mower and adapt to curves or slopes. Follow the approved hydraulic setup and operating procedure in the current Kverneland operator manual.
QuattroLink gives the Kverneland 3300 series rear-mounted mower conditioner 700 mm of vertical movement, including 400 mm upward and 300 mm downward travel, plus a 30-degree transverse working range. Its four-arm suspension allows the mower to float independently and respond quickly to changing ground contours while maintaining consistent ground pressure.
Ground pressure on the Kverneland 3300 series rear-mounted mower conditioner is adjusted hydraulically from the tractor. Set it according to soil firmness, field contours, crop conditions, and operating speed. QuattroLink maintains consistent pressure as the mower follows the ground. Use the approved adjustment procedure and settings in the Kverneland operator manual for your model.
The Kverneland 3300 series rear-mounted mower conditioner has separate front and rear conditioner-hood adjustments. The front setting manages crop intake, particularly in heavy crops. The rear setting controls conditioning intensity and crop flow into the swath or wide-spreading system. Select the settings according to crop density, and the required wilting result.
Yes. The Kverneland 3300 series rear-mounted mower conditioner supports both swathing and wide spreading. The rear conditioner-hood setting helps manage crop flow into the selected crop-placement system. Choose the setup according to crop volume, weather, wilting strategy, and whether the forage will next be tedded, raked, baled, or collected.
NonStop BreakAway protects the Kverneland 3300 series rear-mounted mower conditioner across its full working width. When the mower encounters an obstacle, the mowing unit moves backward and upward before returning automatically to work. Protection also covers the inner area nearest the tractor, helping reduce impact damage, interruptions, and manual resetting.
