Kverneland ROC RT 870
Centre swath mergers
Highlights
The unique tine design and cam-controlled pick-up mechanism The exceptional suspension system allows for high capacity Suspended tandem wheels prevent grass field damage The unique belt design creates even and fluffy swaths The unique merger can operate with one belt down while the other is in transport Possibility of loading crop on the stopped belt to clean cornersDescription

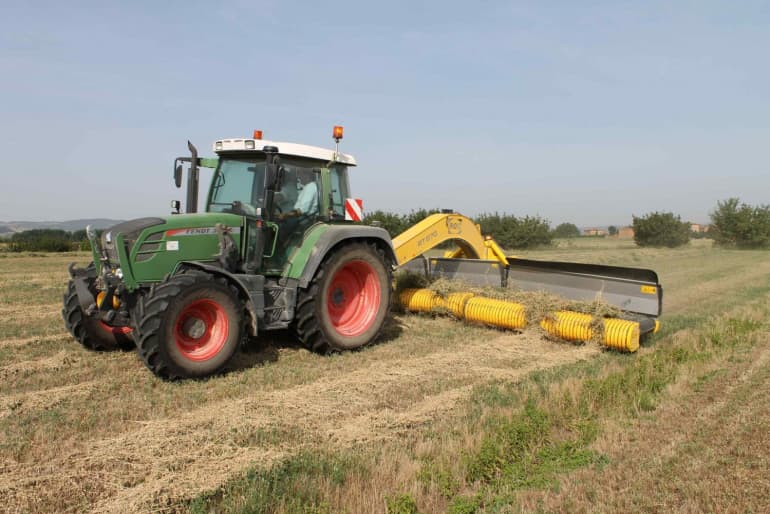

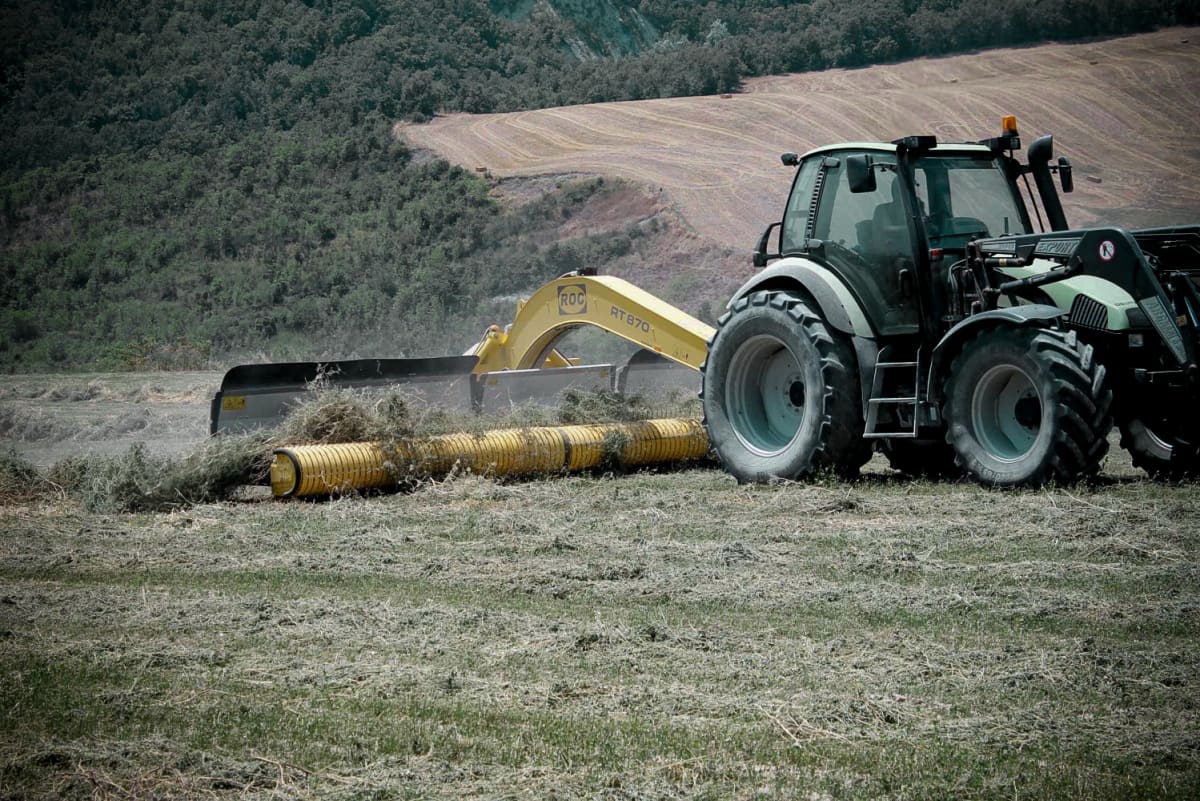

The Kverneland ROC RT 870 is designed to create perfectly formed centre swaths or move two existing swaths to fresh ground.
The Kverneland ROC RT 870 produces 1m wide swaths that match baler pick-ups perfectly. It's excellent for raking large crops before a medium-sized chopper. The machine has a perfect suspension system for ground tracking and high capacity in all field conditions. The pick-up and belt design ensures clean lifting and transportation of all crop types, preventing soil contamination.
The Kverneland ROC RT 870 is easy to use and has a unique break-back system that protects the pick-up and frame from damage caused by foreign objects. The machine requires low maintenance and offers easy repair access, providing low operating costs and maximising productivity.
Features
- A three belt system with three pick-ups

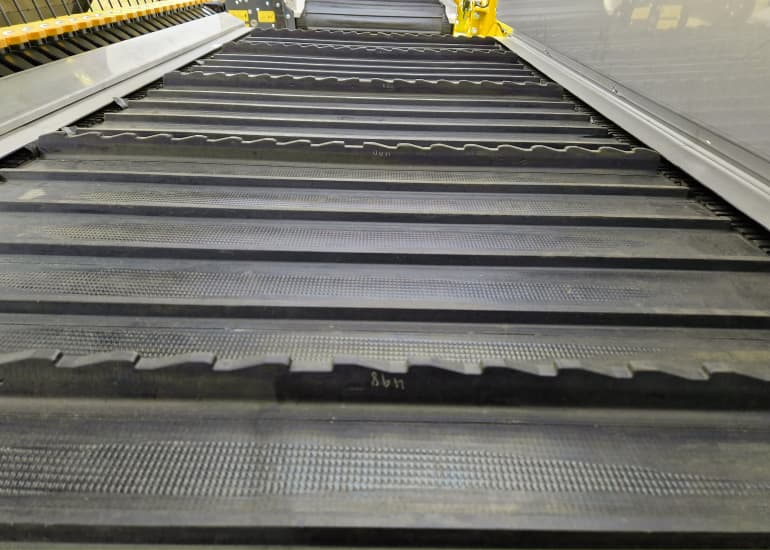

- Fiberglass-reinforced saw blade-shaped crossbars provide optimal transportation for dry and wet crops

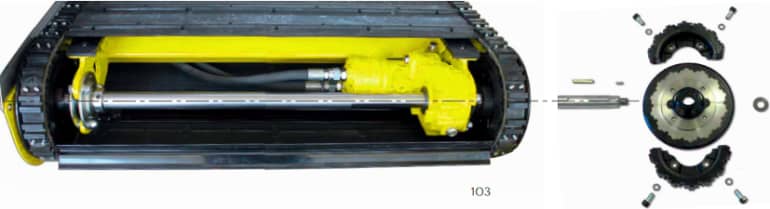

- An actively-driven belt, equipped with a sprocket and gear belt, ensures continuous operation even in heavy crop conditions
- Most maintenance and repairs can be done without removing the belt, and all parts can be disassembled with a single wrench
- The speed of the belt and pick-up can be precisely adjusted
- The tension of the belt is evenly distributed between the left and right sides since it is adjusted centrally

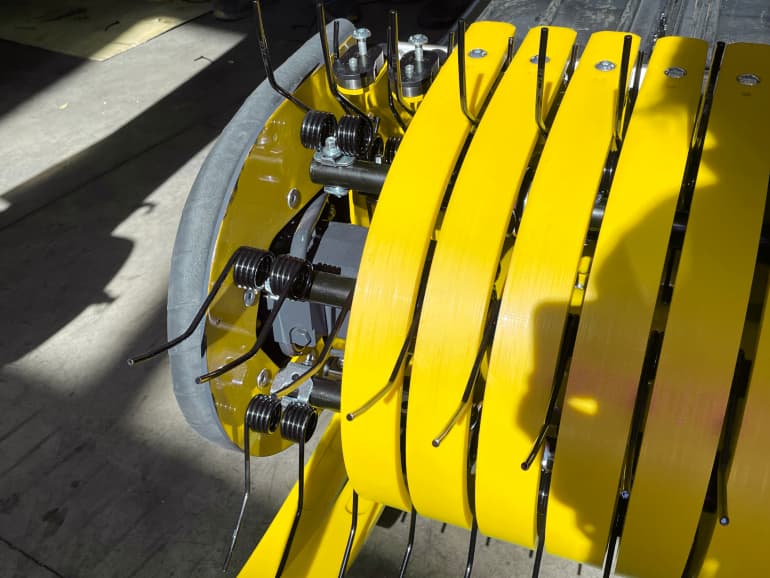

- Controlled pick-up with two cams and six tine bars
- For heavy crops such as silage and maize straw, it is recommended to use wide stripes
- Heavy-duty plastic strippers maintain shape when hitting rocks and their design prevents crop loss

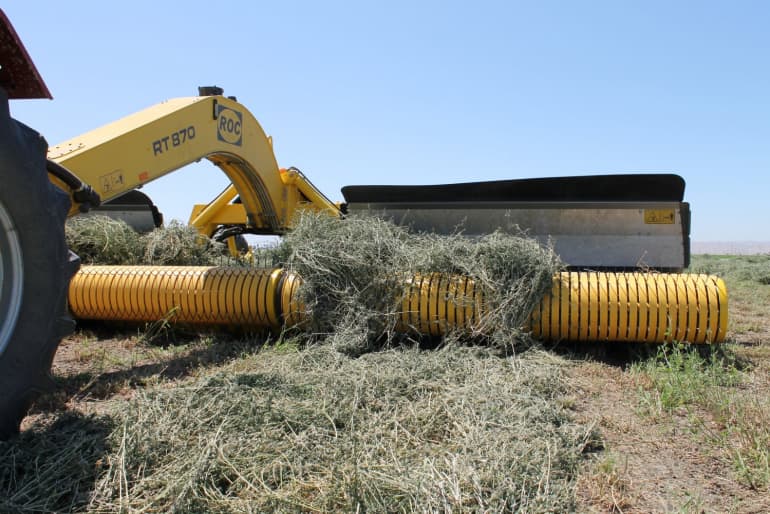

- Even the shortest crop can be transported on the belt with the hydraulic adjustable roller suspended in all independent positions
- Replacing tines with only two bolts to remove (one per tine and one per plastic stripper) using only one hand
- It is possible to repair bearings, cam track, and tine bars without the need to disassemble the pick-up
- Electric height adjustment
- Our mergers are designed and built to be maintenance-friendly
- All components can be easily disassembled
- Wear parts are in small sizes and replaceable with limited efforts
- To ensure a high speed and a clean crop in all conditions, four suspensions are used

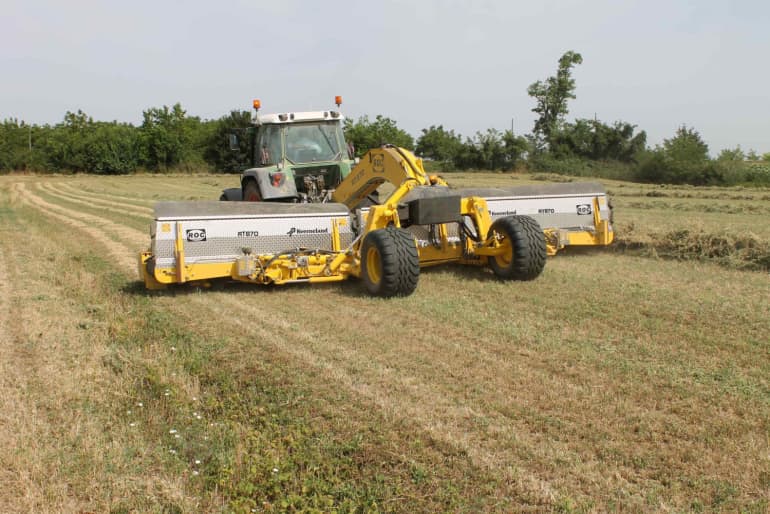

- The pickup's standard tandem wheels protect the ground from damage
- The tandem wheel comes equipped with a spring suspension system

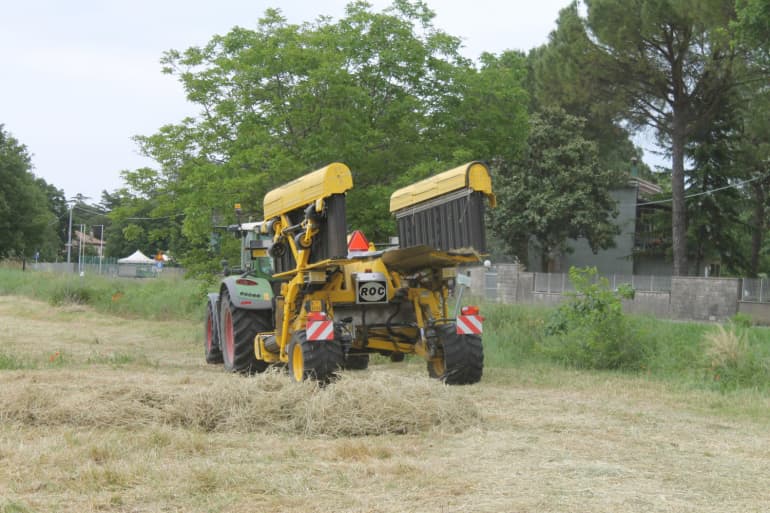

- With a transport width of only 2.5 m the machine can travel easily on narrow roads and does not require any special permissions
- An easy-to-use control panel manages all essential functions.
- The terminal provides optional features such as belt auto-stop when lifting the machine to ensure a clean swath ending
- The safety system allows basic machine functions and operation without electronics
Technical specifications
Technical specifications
Download brochureProduct name |
Working width (m) |
Pick-up width (m) |
Transport width/ height(m) |
Belts n. |
Power requirement (hp) |
Weight (kg) |
Kverneland ROC RT 870 |
8.7 |
7.6 |
2.5/3 |
3 |
80 |
4440 |
