Kverneland 7730
Wrapper | Turn table wrapper
Self-loading trailed turntable wrapper for easy operation
Trailed turntable wrapper handling round bales up to 1000kg
The advantages of this Turn table wrapper
- Trailed turntable wrapper
- Able to handle round bales up to 1000kg
- Gentle loading and unloading of the bale
- Optional DuoWrap feature for faster wrapping
- Computer control offers fully automatic operation
Description

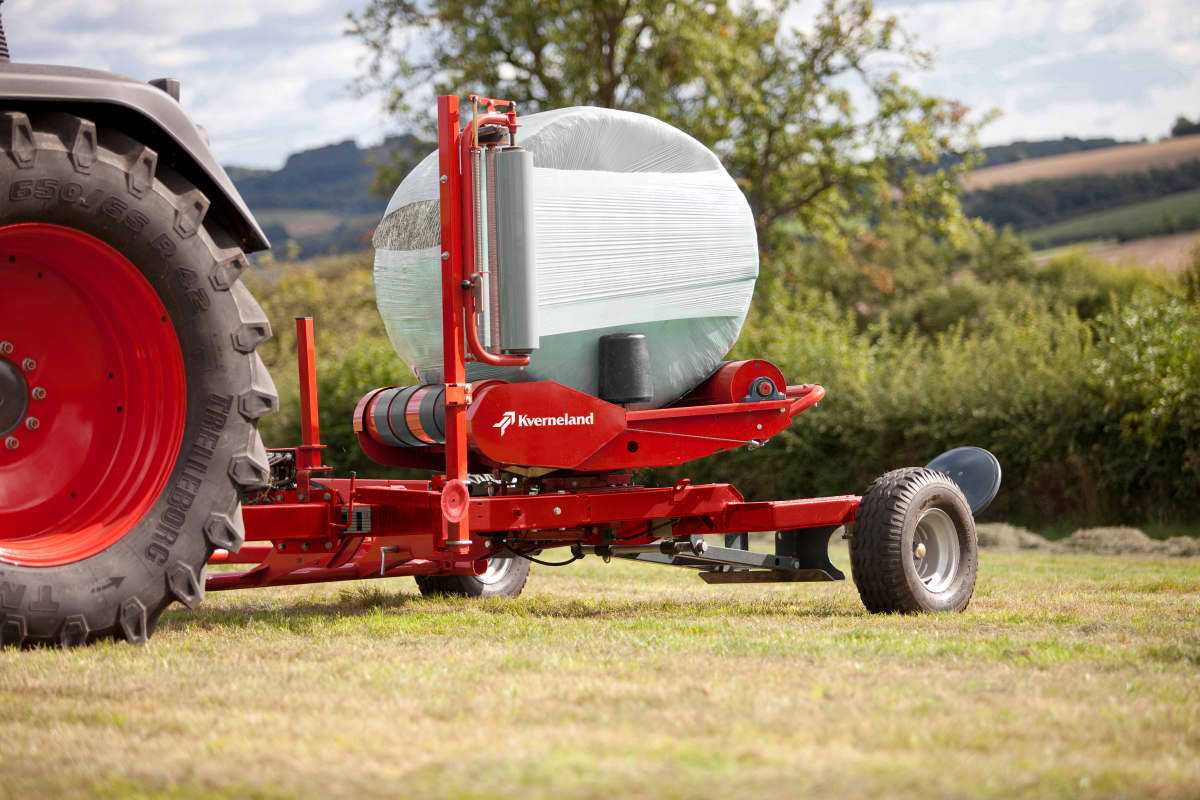

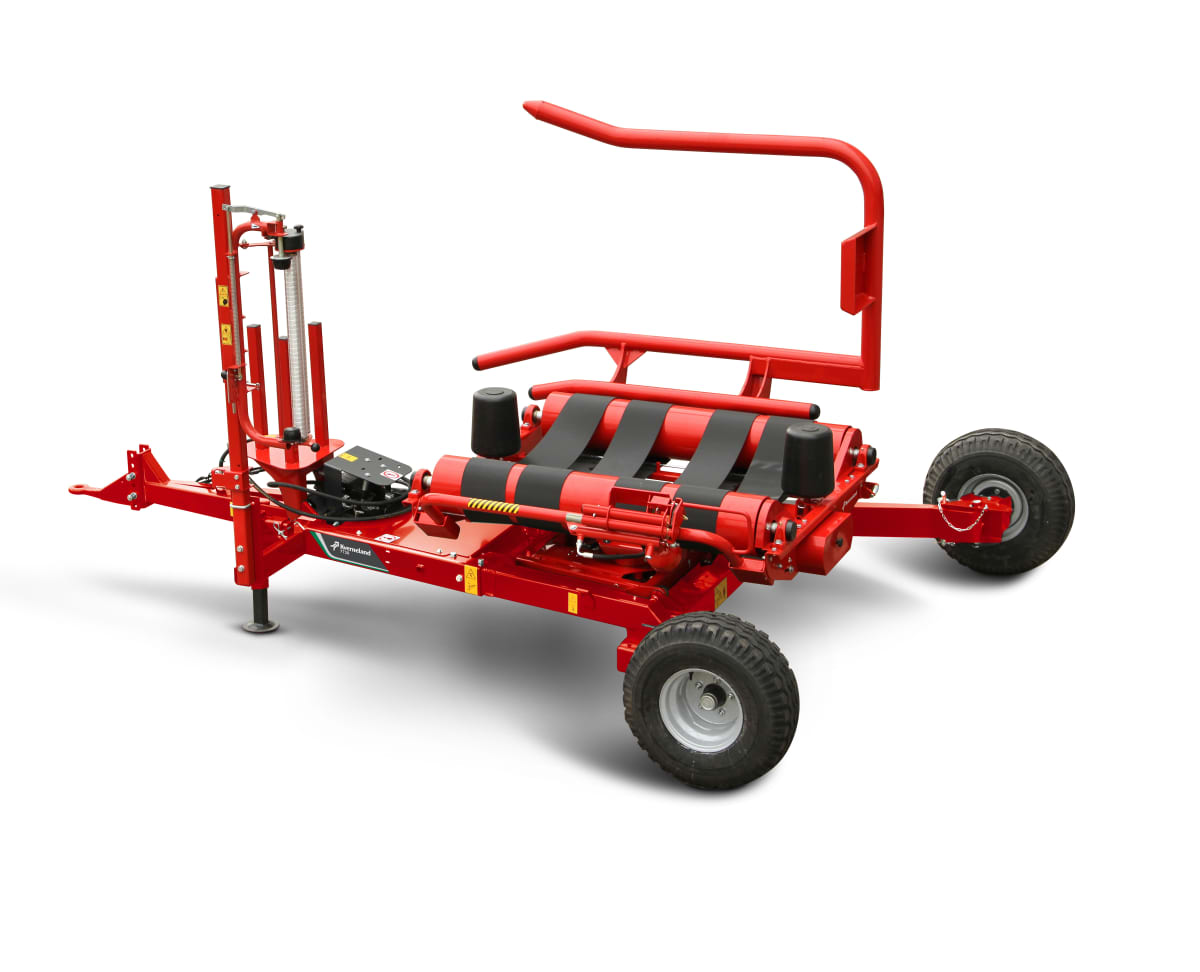

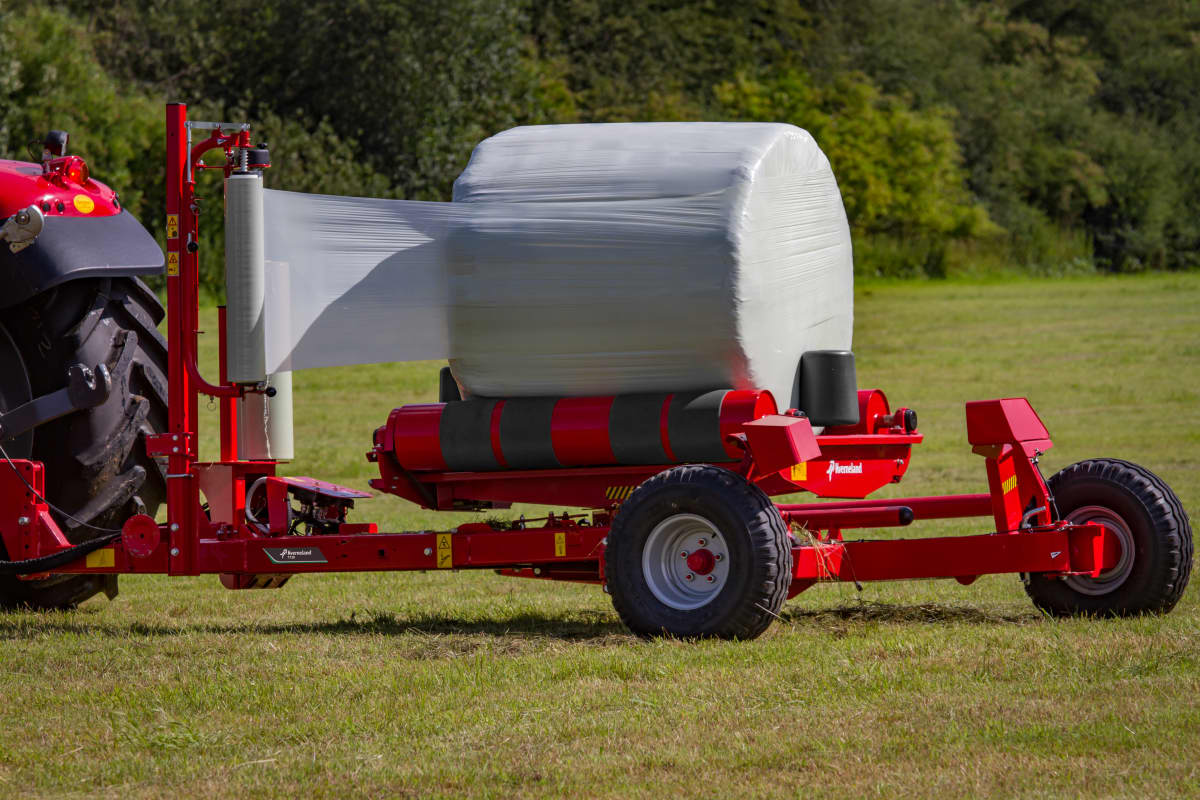

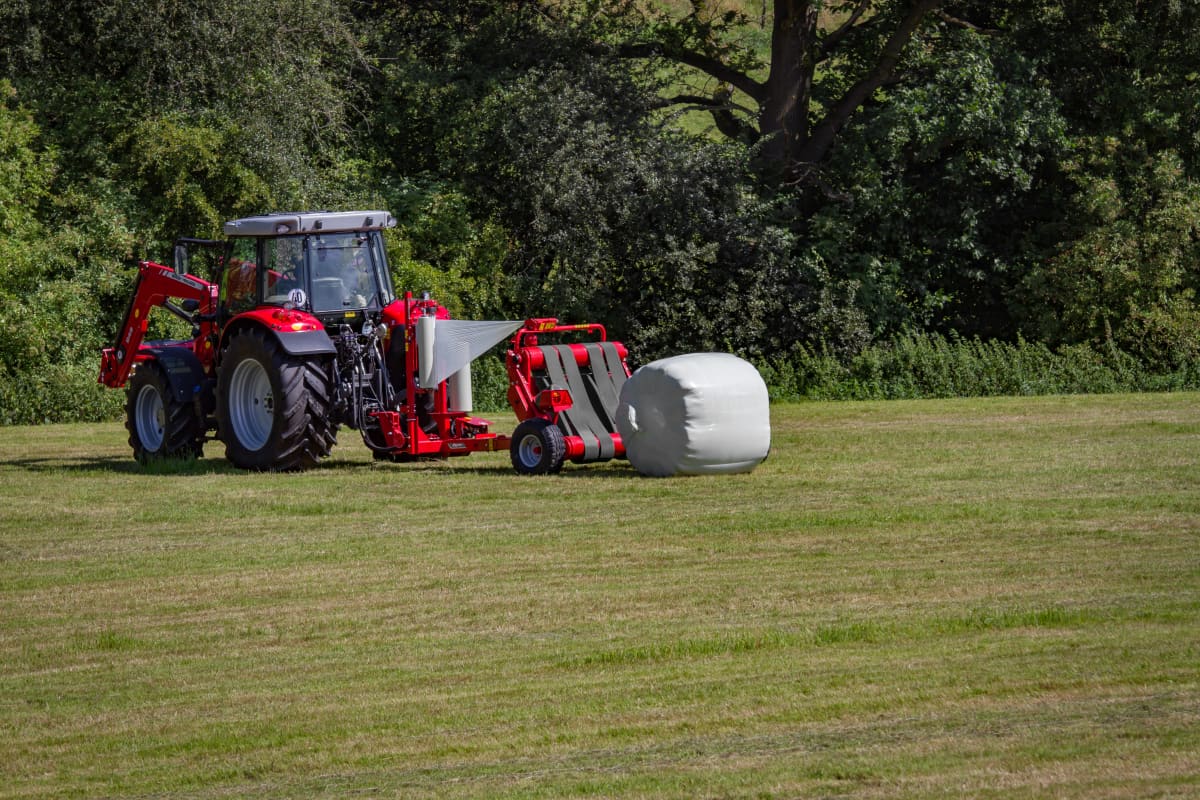

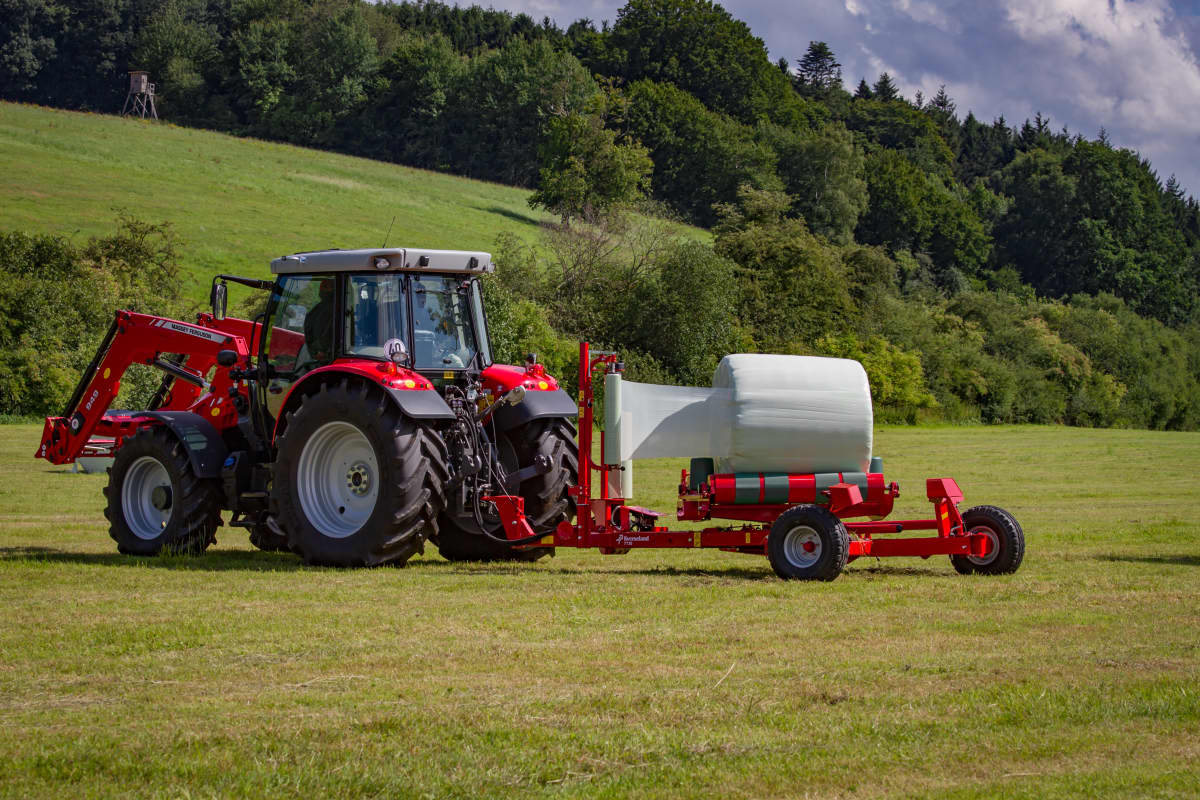

The Kverneland 7730 is a trailed wrapper designed for smaller tractors. With a low profile table for stable wrapping and gentle discharge of the wrapped bale, it is easy to use, with even the cable control version offering automatic counting of table rotations and auto table stop when a correct number of wraps are completed. Kverneland 7730 models can have of Single or DuoWrap pre-stretcher for faster wrapping. The hydraulically operated loading arm is positioned on the right-hand side and can handle bales from 1.20 m up to 1.50 m in diameter.
Features
Features
- Stable wrapping and gentle discharge.
- Hydraulically operated loading arm, and a low
- loading height, provides fast transfer of bale
- from arm to turntable.
- To achieve a narrower transport width, the right-hand wheel is turned to the inside of the support arm.

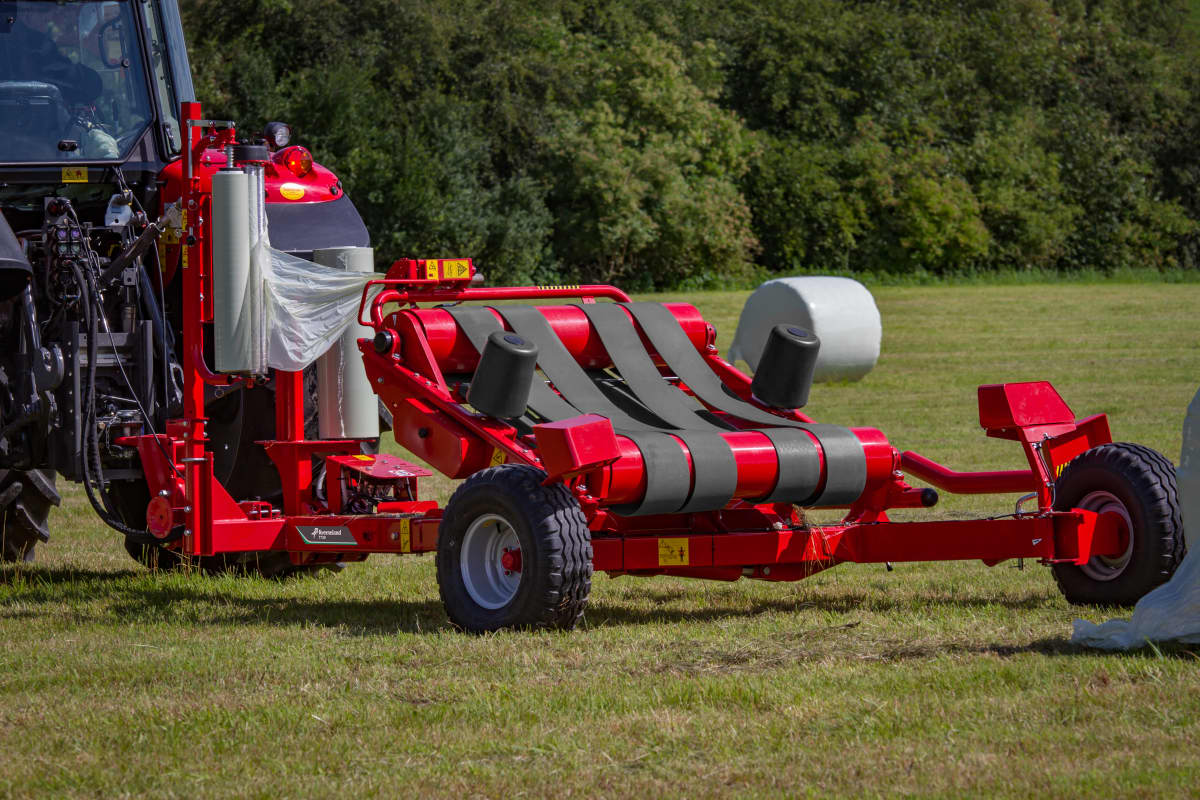

- Turntable with two driven rollers designed for high bale stability and smooth, even rotation.
- Single or DuoWrap twin film pre-stretcher for faster wrapping.
- Consistent film stretch reduces tear risk.
- One-hand roll loading system
- Hydraulically operated for precise cutting and holding.
- Cuts and holds film efficiently for the next cycle
- Cable Control (M): Simple control with automatic wrapping end stop
- Computer Control (C): Fully or semi-automatic operation
- Bale Turner guarantees that bales are discharged on their ends, offering improved protection against damage.
- DuoWrap double pre-stretch system for up to 33% higher wrapping capacity and optimum bale coverage.
Technical specifications
Technical specifications
Download brochure| 7730 M | 7730 C | ||
|---|---|---|---|
| Max bale size (m): | 1.20 x 1.50 | 1.20 x 1.50 | |
| Max bale weight (kg): | 1000 | 1000 | |
| Control function: | Cable control | Computer control |
Technical specifications
Technical specifications
Download brochureMax Bale Size |
Max Bale Weight |
Control System |
|
7730 M |
1.20x1.50m |
1000kg |
Manual Cable Control (M) |
7730 C |
1.20x1.50m |
1000kg |
Computer Control (C) |
Product FAQ`s
Its extendable wheel arm increases track width, giving better stability during bale loading and helping customers work more safely in the field.
The low table and smooth bale rotation support gentle handling and accurate film application, helping customers reduce damage and protect bale quality.
Automatic cut and hold, plus simple controls, help reduce driver workload and make long wrapping days easier and more comfortable.
DuoWrap increases wrapping capacity and gives even film coverage, helping customers save time while ensuring reliable forage protection.
It is a trailed turntable wrapper with low power needs, making it practical for smaller tractors and helping customers use existing equipment efficiently.
