Kverneland 5087
Mower | Mower Conditioner

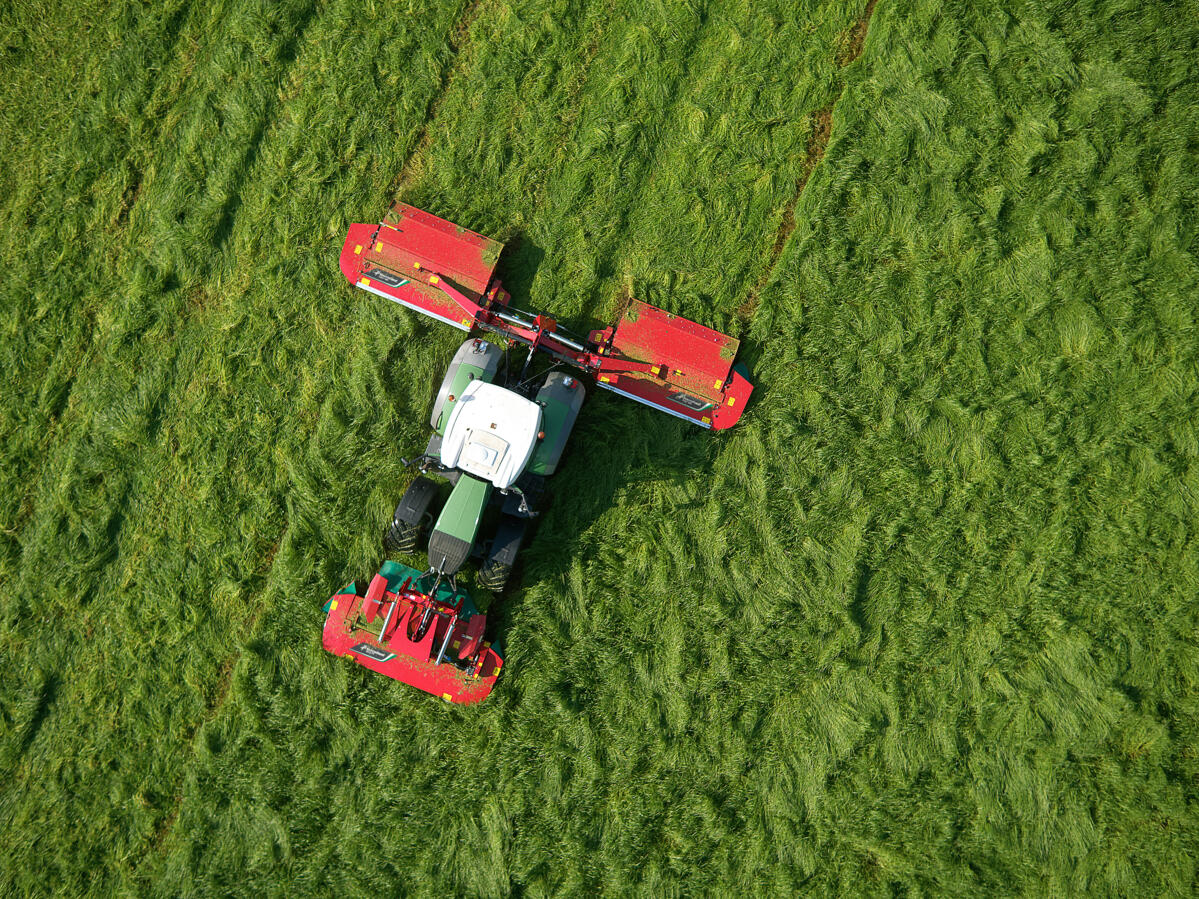

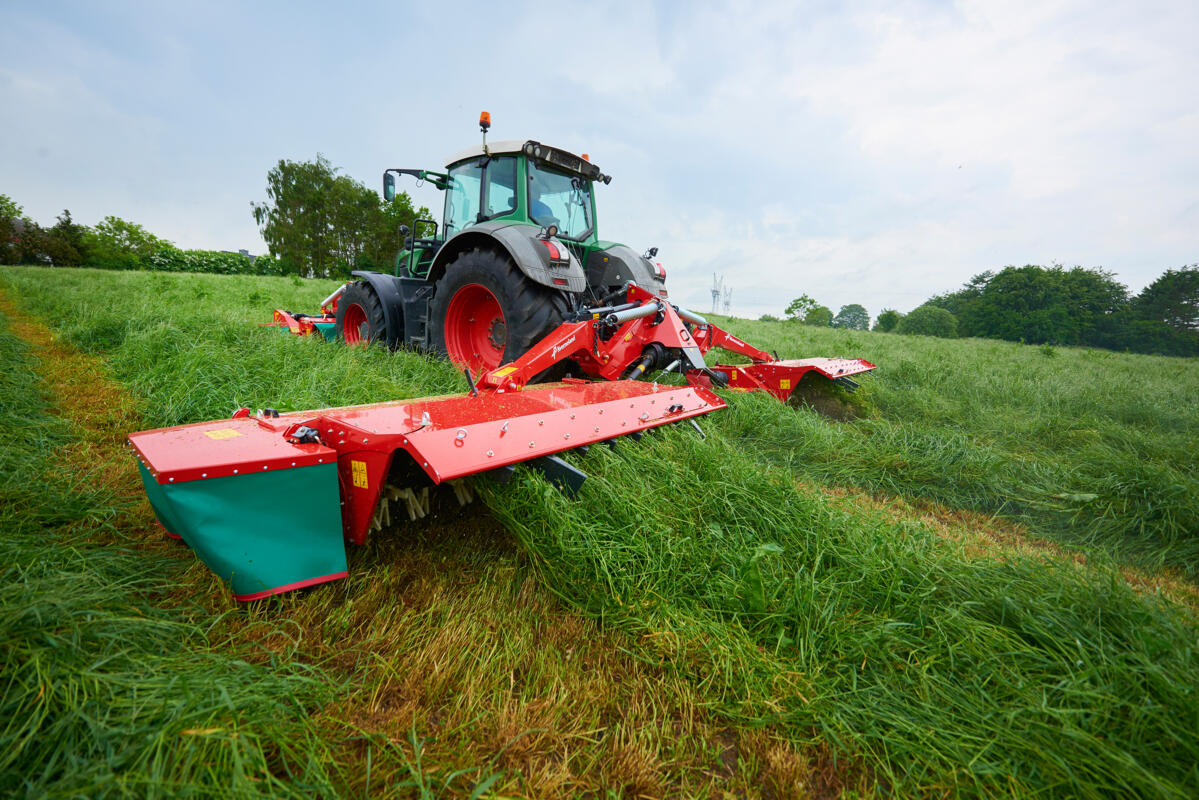

Efficient triple mower combination
Triple mower combination with SemiSwing conditioner.
The advantages of this Mower Conditioner
- Low weight design, power requirements from 150hp
- Integrated vertical parking stand
- Hydraulic adjustment of ground pressure (optional)
- NonStop BreakBack
- Centre suspended mowing units
Description
Kverneland 5087 MT/MN with a working width of 8.75m is fitted with SemiSwing conditioner. It is an uncomplicated triple mower designed to lower operating costs in terms of power and fuel consumptions, with power requirements starting at only 150hp. It comes standard with an integrated parking foot for easy and convenient parking, requiring a minimum of space during winter storage. The machine is optionally available with hydraulic spring adjustment.
Features
Features
This feature provides easy and simple setting of the ground pressure. For greater operator comfort, ground pressure of the large suspension spring is set hydraulically from the tractor cab. On the hydraulic version the tension on the large suspension spring, which controls the ground pressure, is adjusted hydraulically, to increase or lower pressure. The chosen ground pressure level is conveniently registered from the easy-to-read scale

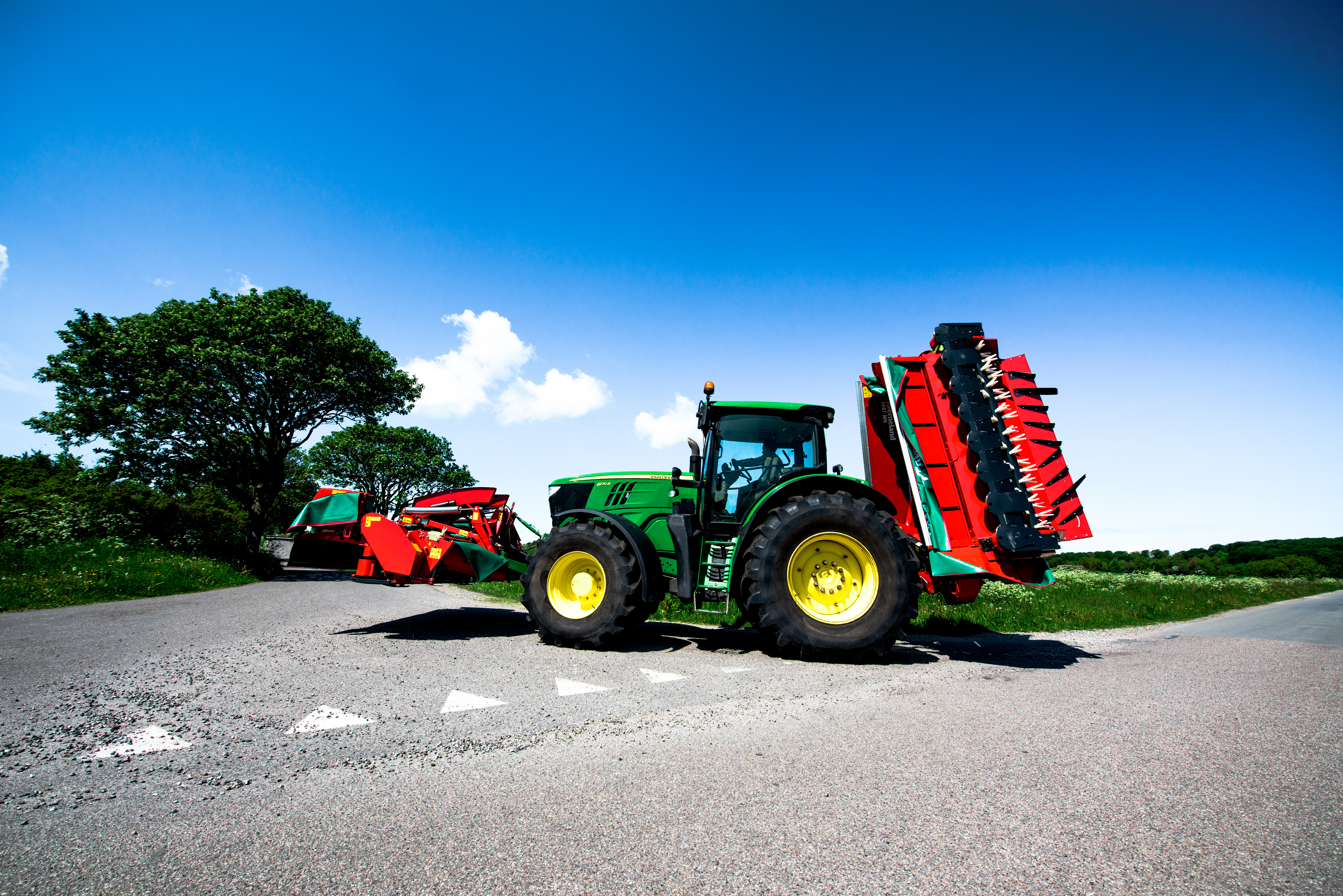

Vertical Transport Position
For transport the mower folds into a compact position well behind the tractor. The folding design ensures that the weight is distributed evenly, with the weight of the mower close to the tractor. Transport height is well below 4.00m.
Parking, Safe and Sure-Footed
With the integrated parking device, storage of the machine is made easy and convenient, requiring a minimum of space during winter storage. The mower is firmly parked on strong and stable parking foot, bringing total height below 4.00m.
Accurate and Simple Suspension
The Kverneland 5087 MN is fitted with a highly efficient suspension system that includes centre suspended mowing units, efficient spring suspension and NonStop BreakBack. The mowing units are centre suspended via a suspension spring, to give an even weight distribution across the complete mower width. The benefit is less skid wear, optimum protection of the stubble and less fuel consumption.
Two Mounting Options
Kverneland 5087 MN can be adjusted for optimal operation according to different circumstances, such as field contours or working width of the front mounted mower. To ensure optimal overlap between front and rear units, the mowing units can be mounted in two positions on the suspension arm.
Protection of the Cutterbar
Kverneland 5087 MN series is all fitted with the NonStop BreakBack system to protect the cutterbar. The integrated NonStop BreakBack autoreset system will protect the cutterbar from foreign obstacles. If an obstacle is hit in the field the mowing unit will swing backwards and up. This gives maximum protection of the cutterbar.
Effortless Protection
There is no need to stop - or even to reverse the tractor to get the mowing unit into working position again. When engaged the spring loaded design ensures that the NonStop BreakBack system automatically returns the cutting unit to its´ original working position.
- Due to the nylon tines fitted to the conditioner, the total weight of the machine is kept to a minimum, while keeping an aggressive conditioning.
- The fixed conditioning fingers are made from high quality nylon, to make them very rigid.
- This means excellent protection from stones and other obstacles. A perfect solution for farmer and smaller contractor machines!
Technical specifications
Technical specifications
Download brochure| Model | 5087 MT | |
|---|---|---|
| Conditioner type | SemiSwing | |
| Working width m(ft) | 8.75(28'9") | |
| Transport width m(ft) | 3.00(9'8") | |
| PTO (rpm) | 1000 | |
| PTO power req. min (kW/hp) | 110/150 | |
| Number of discs/knives | 2x8/2x16 |
Technical specifications
Technical specifications
Download brochureWorking Width |
No. of Discs |
Conditioner |
Power Requirements |
|
5087 MT/MN |
8.70m |
2 x 8 round discs |
SemiSwing/Nylon tine conditioner |
100kW/150hp |
Product FAQ`s
The Kverneland 5087 triple mower conditioner requires at least 110 kW or 150 hp of PTO power and operates at 1,000 PTO rpm. Tractor suitability also depends on the front mower, linkage, hydraulics, lifting capacity, axle loads, and ballast. Ask your Kverneland dealer to verify the complete tractor and mower combination.
The Kverneland 5087 triple mower conditioner requires a compatible front mower to create a complete mowing combination. Ideal compatible models include Kverneland 3600 F or 3300 F models. The correct match depends on overlap, tractor power, front linkage, PTO, axle loads, and transport configuration. Ask your Kverneland dealer to verify the complete system.
Adjust the SemiSwing conditioner on the Kverneland 5087 triple mower conditioner according to crop volume, maturity, and the required wilting result. Follow the approved settings and procedures in the operator manual for your machine. Also consider whether the crop will be spread widely, tedded, raked, baled, or collected by a forage harvester.
The Kverneland 5087 triple mower conditioner can spread conditioned crop wide using its spreading hoods. Wider crop placement increases the crop surface exposed for wilting and supports different tedding and raking strategies. Select the crop-placement setup according to crop volume, weather conditions, and the capacity of the following forage-harvesting machines.
The Kverneland 5087 triple mower conditioner has an integrated vertical parking stand designed to reduce the shed floor area needed during storage. Before preparing a storage location, check the available shed height, access space, floor suitability, and approved parking procedure. Exact parked dimensions should be confirmed for the specific machine configuration.
