Kverneland Densus 7060

• 2.0m Pick-up on EasyFeed version with 4 tines bar
• 2.30m Pick-up on PowerFeed and ChopFeed version
• Twin cam tracks on the 2.3m wide pick-up.
• Tine bars with two central supports on the 2.3m wide pick-up.
• Small diameter pick-up design.
• Roller crop press is standard on the 2.0m and 2.3m wide pick-up.
• Narrow transport width.

ChopFeed15

• The ChopFeed 15 knife chopping system provides a fast and efficient flow into the baler. With a chopping length of 70 mm, it is the ideal solution for producing tight bales with superb silage quality.
• Each knife is spring-protected against foreign obstacles. The knife will immediately return to its position once the obstacle has passed.

PowerFeed Rotor Intake

• Truly impressive intake capacity can be achieved with the PowerFeed rotor intake system - easily handling all crop types, whatever the conditions.
• The PowerFeed rotor, with its 14 rotor fingers, proactively forces the material into the bale chamber for higher intake speed and capacity, providing instant bale start.

EasyFeed intake

• EasyFeed rotary intake system with huge intake capacity and gentle crop handling.
• This technology incorporates integrated augers into the rotor feed design, allowing the crop to flow across the entire width of the bale chamber, resulting in increased capacity and bale density

DropFloor

• The ChopFeed 15 and PowerFeed intake features come equipped with the highly effective Parallelogram DropFloor system, which makes clearing blockages faster and easier. Unlike traditional systems that only lower the rear edge of the drop floor, this system also lowers the front section of the floor, where blockages are more likely to occur.

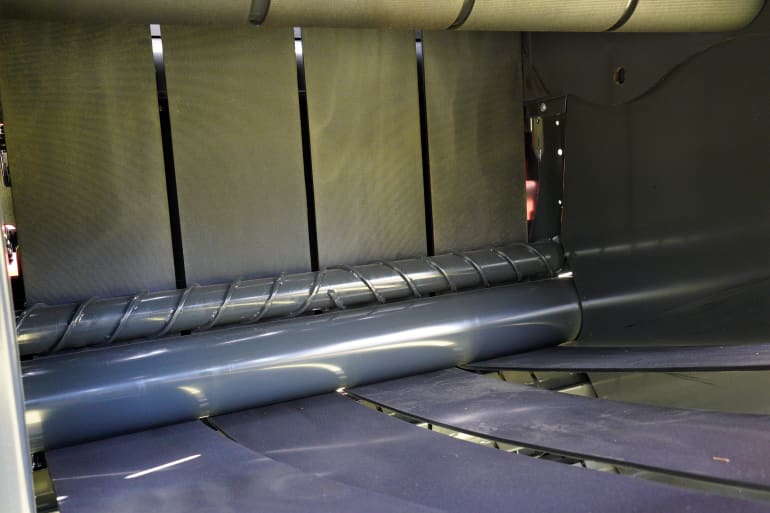

• A combination of three rollers and four endless belts provide smooth bale rotation and minimal crop losses, even when working in dry brittle straw.
• Hydraulic belt tensioner and fast tailgate operation place the variable series in the top list of most efficient round balers in the market.
• Spiral profile scrapper roller for efficient cleaning effect in all condition.
• Profiled rollers provide instant bale formation and are equipped with self cleaning scrapers designed for working in all crop conditions.

• Kverneland Densus balers feature the patented front-mounted PowerBind net system, eliminating troublesome feed rollers and boasting a market-leading cycle time.

• The PowerBind injection arm continuously retains the net. When the bale is 90% complete, the arm moves forward in preparation for net injection.

• When the bale is 100% complete, the net is fed flat and tight for accurate and reliable injection. PowerBind ensures a professional job without wind or crop interference.

• Low net loading height

• PowerBind offers a convenient and time-saving solution with its low loading height, allowing for easy replacement of rolls.

Tellus 700

Smart ISOBUS control made easy

The Tellus 700 is a feature-rich ISOBUS terminal designed to provide simple, efficient, and reliable machine control. Its touchscreen interface offers an intuitive user experience, helping operators manage machine functions quickly and accurately. Suitable for a wide range of ISOBUS-compatible equipment, the Tellus 700 combines modern technology with straightforward operation, making it an ideal solution for professional baling operations.

Key benefits

• Full ISOBUS compatibility for flexible machine control
• Intuitive touchscreen operation
• Clear monitoring of machine performance and settings
• Reliable integration with ISOBUS-compatible tractors

Tellus 1200

Advanced ISOBUS control and connectivity

The Tellus 1200 is a premium touchscreen terminal that combines advanced ISOBUS functionality with enhanced connectivity. Customisable screen layouts, intuitive operation, and seamless integration with digital farming solutions provide complete machine control and support efficient precision farming operations.

Key benefits

• Large touchscreen with customisable display layouts
• Advanced ISOBUS machine control
• Simultaneous monitoring of multiple machine functions
• Connectivity for digital farming and data management

TIM (Tractor Implement Management)

TIM is a cross-product and cross-manufacturer ISOBUS solution for the agricultural machinery industry whereby the implement is able to control certain tractor functions. It enables two-way communication between tractors and implements, allowing both machines to work in perfect harmony. As well as increasing efficiency, the possibility of human error due to fatigue is also greatly reduced. TIM technology has the advantage of significantly increasing driver comfort by automatically performing many of the repetitive actions of the baling process. The cost aspect is another factor to bear in mind. Highly efficient use of TIM-equipped baler results in lower costs for parts that wear out.

Key benefits

• TIM system as optional equipment
• TIM takes most of the work off the operator's hands when baling
• Significant increase in comfort for the operator, as endless work steps are saved
• Reduced operator fatigue and faster completion of work while maintaining high bale quality
• High user-friendliness of the TIM system, which even regularly changing operators can quickly master

Focus 3

Simple baler control at your fingertips

The Focus 3 terminal provides intuitive and reliable control of key baler functions through a clear colour display. Operators can monitor bale formation, adjust density and bale size, manage tying functions, and track bale counters directly from the tractor seat.

 Key benefits

• Easy-to-read colour display with intuitive operation
• Real-time bale growth monitoring and bale shape guidance
• Intelligent Density 3D setting for consistent bale quality
• Simple adjustment of bale size, density and tying functions

• Each bearing is clearly marked from the greasing bank making the maintenance simple.
• External bearings are reducing the service time to the minimum.
• Automatic chain lubrication with individually adjustable outlets.

• Thanks to the actuator and work light kit, control the net brake directly from the binding and maintain easily the machine even during long days.

Kverneland Sync for Balers – Real-Time Performance, Anytime

Always Connected – Smarter Baling Made Simple

With Kverneland Sync, your baler is continuously connected to IsoMatch FarmCentre, providing real-time access to critical machine parameters and performance indicators. This seamless connectivity keeps you and your team up to date on essential baler metrics, ensuring smooth, uninterrupted operations.

Remote Service – Minimize Downtime with Kverneland ServiceCentre

Kverneland  ServiceCentre integration allows technicians to remotely diagnose and address any issues with your baler, minimizing downtime and ensuring you're always ready for the next job.

Additionally, Kverneland Sync enables geofencing to help protect your baler against theft, and an accumulator lets you locate your machine even when it’s not connected to a tractor.

The Tellus 1200 Universal Terminal is a high-performance 12-inch display designed for maximum control and flexibility. With multiple customisable screen views, it allows operators to monitor and manage several functions simultaneously for greater efficiency. Fully ISOBUS compatible, it integrates seamlessly with tractors, implements and precision farming solutions. Advanced guidance and application capabilities ensure precise, controlled operation, while the intuitive interface and adaptive day/night mode provide optimal visibility and ease of use in all conditions.

The Tellus 700 Universal Terminal combines precision farming capabilities in a compact and intuitive 7-inch display. With ISOBUS compatibility, it enables seamless control of tractors, implements and smart add-ons from a single interface. Its straightforward design ensures easy operation, while integrated guidance and application features support accurate and efficient fieldwork. The adaptive day/night mode guarantees clear visibility in all conditions, making it a reliable solution for a wide range of farming operations.

The Kverneland Eye is a camera solution that enhances visibility and safety during every operation. Fully integrated with Tellus 700 and Tellus 1200 terminals, it provides a clear, real-time view of both implement and surroundings, giving the operator full control at all times. With flexible viewing options and smooth on-screen integration, it supports confident manoeuvring and precise work in all conditions.

Designed for seamless use within the Kverneland system, it ensures a reliable overview for smarter and safer farming.
