Kverneland 9546
Rake | Single rotor rake
High-Performance HydroLift concept rakes
ProLine single rotor rakes with 4.60m working width
The advantages of this Single rotor rake
- HydroLift for a quick adaptation to field conditions
- Maintenance-free rotor head
- Adjustable curve disc
- Tandem axles offer perfect ground contour followings
Description
Kverneland 9546 ProLine, 3-point mounted rotary rakes with a working width of 4.60m are designed based on the ProLine gearbox technology. The fully enclosed design ensures complete and permanent lubrication. It makes the entire system maintenance-free. Features such as oscillation dampers, tandem axles, hydraulic height adjustment and adjustable curve disc are standard hallmarks of the single rotor rakes.
Features
Features

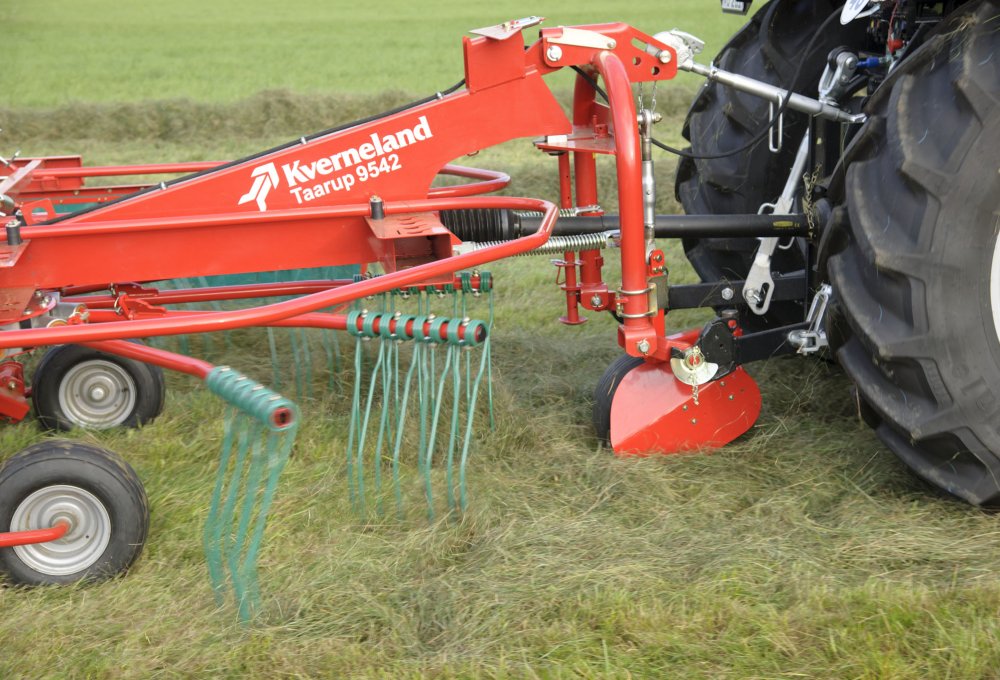

- Kverneland 9542 and 9546 are fitted with the hydraulic height adjustment system ‘HydroLift’ as standard.
- Kverneland HydroLift allows you to adjust the rake to different field conditions.
- From the tractor cab you can quickly set the raking height to suit the length of the stubble or varying ground conditions.
- The ProLine rakes feature a unique drive system which comprises oil-immersed pinion and crown wheels.
- The fully enclosed design ensures full and permanent lubrication, and makes the entire system absolutely maintenance-free.
- The hardened cam track is adjustable, and features a flat curve and an extremely large 400mm-diameter, providing positive guidance to the steel rollers, and promoting quiet machine running.
- Aluminium-bearing housings, with two integral ball bearings and wide support, provide solid and maintenance-free tine arm mounting.
- All Kverneland CompactLine rakes feature curved tine arms for significantly cleaner raking performance and optimised swath formation.
- This design ensures that the row of tines on each tine bar has a more effective approach angle to the oncoming crop, and also gives a cleaner lift out of the tine from the formed swath.
- Kverneland rotary rakes are all fitted with “Duo Tines” that deliver optimal performance and thorough raking.
- The distance between each tine on every Duo Tine is smaller than is the case with conventional tines.
- This ensures precise and thorough performance in the field, and reduces crop wastage caused by crops not being collected into the swath.
Technical specifications
Technical specifications
Download brochure| 9546 | ||
|---|---|---|
| Working Width | 4.6m | |
| Tine Arms | 13 | |
| Weight (kg) | 670 | |
| Rotor diameter (m) | 3.65 |
Technical specifications
Technical specifications
Download brochureWorking Width |
Tine Arms |
Weight |
|
9542 |
4.20m |
12 |
640kg |
9546 |
4.60m |
13 |
670kg |
Product FAQ`s
Reduced routine maintenance helps customers save time, lower service effort and keep the rake available when it is needed most. The gearbox is maintenance free.
Its effective ground-contour following and clean crop collection help minimize ash content and preserve feed value.
The wider working area helps reduce the number of passes required, improving field efficiency.
The adjustable cam track provides precise tine guidance and allows the tine arms to leave the crop quickly, helping create a fluffier swath.
The Kverneland 9546 offers the highest working width in this single-rotor selection while delivering clean raking performance, lowest maintenance and excellent productivity.
With a 4.60 m working width, the 9546 delivers excellent field performance while maintaining the maneuverability advantages of a single-rotor rake.
