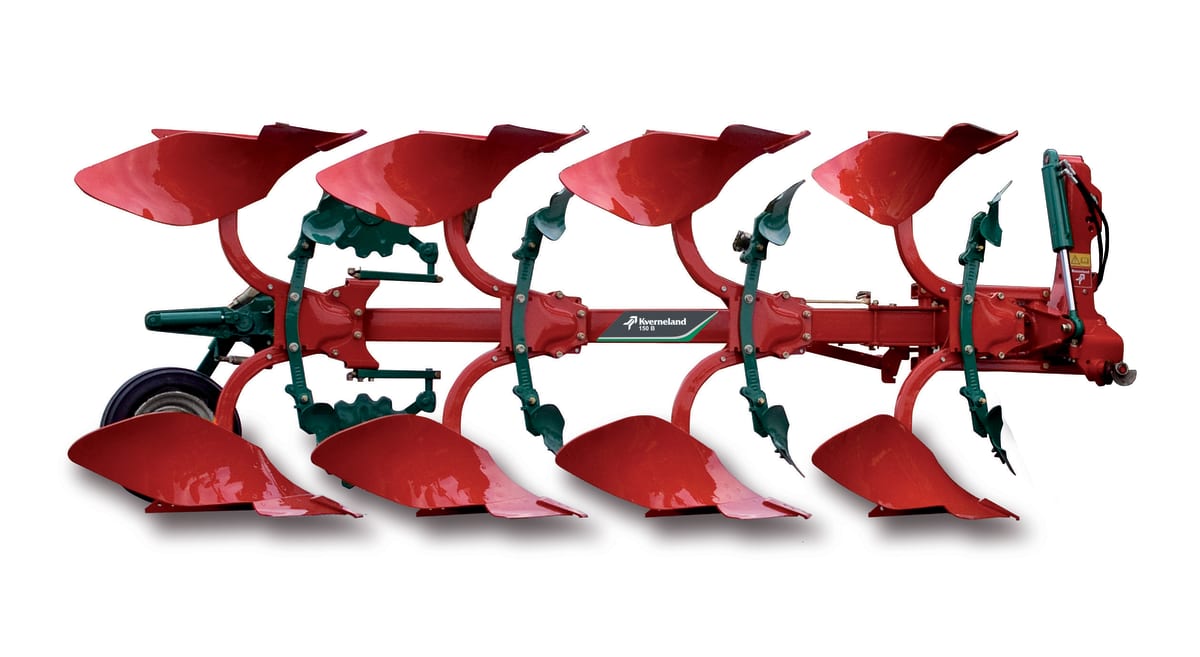

Kverneland 150 B
Perfect choice for high performance in light to medium soils without stones

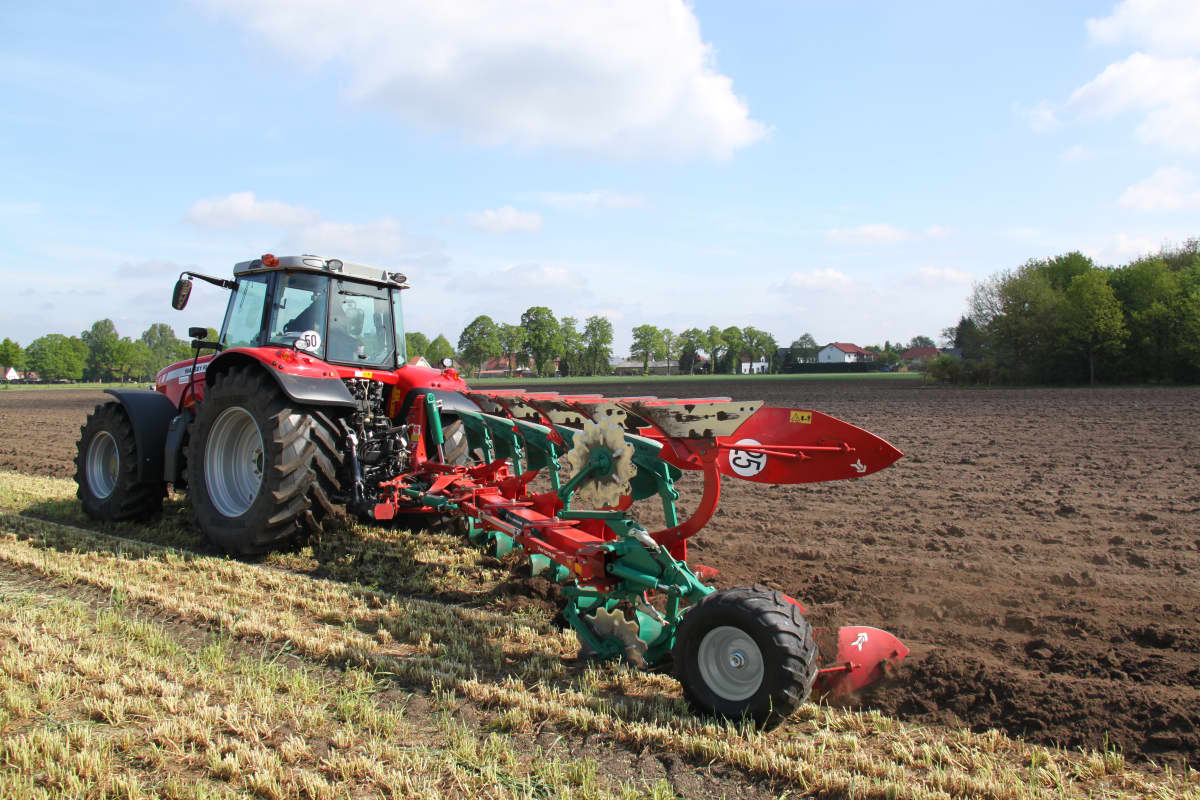

Kverneland 150 B / 150 B Variomat The perfect choice for light to medium soils without stones 3-5 furrows.
Highlights
Low lift requirements, easy to pull Simple to adjust and to operate Extendable by 1 furrow from 3 to max 5 furrow ploughDescription
The design for the Kverneland 150 series guarantees low operating costs to the farmer. The parallelogram enables an easy adjustment of the front furrow to any tractor brands and wheel width settings. The headstock No 150 ensures trouble free operations for an intensive ploughing at small and medium size farms. Robust and light, the Kverneland mounted reversible ploughs 150 B and 150 B Variomat® are meant for light to medium soil conditions without stones. Shearbolt leg protection (3400kg) Strong 150 x 150 mm frame. Choice of cross shaft, category II / III or quick coupling option.
Highlights
- Low lift requirements, easy to pull, low fuel consumption
- "On the move" furrow width adjustments: Variomat® or easy stepwise system by repositioning only 1 bolt, Kverneland 150 B
- Simple to adjust and to operate. For instance, the 1rst furrow adjustment via the parallelogram system automatically corrects the alignment of the plough
- extendable by 1 furrow from 3 to max 5 furrow plough
Features
Importance of heat treatment
- The frame is an essential part of the plough construction. For Kverneland quality standards, a non heat treated part is a weak part !
- Kverneland frames are heat treated by induction twice. The temperature transfer to the steel is closely monitored. The frame gains 3 times as much strength. This unique Kverneland induction processes provides robustness and flexibility while ensuring an outstanding durability.
Stronger but not heavier
- For the equivalent Kverneland robustness, competitors would use more steel in thickness or in dimensions, therefore producing a heavier frame.
- Heavier frame impacts negatively pulling forces, wearing of parts, lifting capacities, tractor life time, and fuel consumption.
Long lasting
- Weldings are also a critical weakness for a plough frame. Kverneland frames are supplied as one sole part!
Frame availability
- 150 x 150mm for 3, 4, 5 furrows, extendable by 1 furrow max. 5 F. plough
Excellent Ploughing Quality
They are renowned all over the world for their:
- excellent ploughing quality
- outstanding wear resistance
- low draft requirements
Bodies of a unique steel.
Kverneland Technology: 12 hours carburising heat treatment process for:
- optimum wear resistance (sharp as a diamond)
- the necessary flexibility to absorb impacts
Body No. 8 – “Universal body”
for light to heavy soils
good trash burial
easy pulling
Depth: 15 to 30 cm (6 to 12”)
Width: 30 to 55 cm (12 to 22”)
Body No. 9 – “Deep Universal body”
for heavier soils and deeper ploughing
well turned and packed furrows
easy pulling
Depth: 15 to 35 cm (6 to 14”)
Width: 30 to 55 cm (12 to 22”)
Body No. 28 – “Wide tyre body”
suits all soils; even heavier soils than body 8
very wide empty furrow for tractor wheels up to 710 mm
good turning and well packed
easy pulling
suitable for Depth: 12 to 30 cm ( 5 to 12”)
Width: 30 to 55 cm (12 to 22”)
Body No. 30 – “Finger body”
for sticky-stony soil and abrasive soils
good work in heavier soils
best crumbling effect
wide furrow bottom,
Depth: 20 to 35 cm (8 to 14”)
Width: 30 to 55 cm (12 to 22”)
Body No. 34 – Plastic mouldboard
Long and slim shape (similar to body 28)
For soils with high humus content without stones
Advised for tactors with large tyres
Easy pulling
Working depth: 12-35cm
Working width: 30-55cm
Landside / mouldboard: 40 degree
Body No. 38
universal body – easy to pull
for any soil conditions
recommended for tractors with large tyres
from deep to shallow ploughing
perfect turning of the furrow slice
working depth: 12-35 cm
working width: 30-55 cm
landside / mouldboard: 40°
Kverneland Heat Treatment Technology:
- more than 140 years of experience
- steels that withstand the toughest of conditions
- best robustness/weight ratio on the market
- for equivalent robustness, competitors would add more steel and therefore more weight, quicker wear, dissappointing ploughing results
Kverneland Steels:
- Benefits from less weight:
easier to pull/lower fuel consumption/lower lift requirement/reduced wear and stress for the tractor/more economical … - Benefits from more resistance:
minimum breakage/less maintenance/lower rotation for wearing parts/time saving/highest 2nd hand plough value/longer life for the plough/more economical…
Problems always happen when the plough is being used, when the work must be done!
A Kverneland plough is a peace mind!
More info: Kverneland Technology
Technical specifications
Technical specifications
Download brochure| Model | 150 B | 150 B V | |
|---|---|---|---|
| Interbody clearance cm | 85/100 | 85/100 | |
| Head- stock | Nº 150 | Nº 150 | |
| Leg protection | Shearbolt | Shearbolt | |
| Working width cm | 30-45/35-50* | 35-50 | |
| Underbeam clearance cm | 80 | 80 | |
| No. of furrows | 3-5 | 3-5 | |
| Weight (kg) for 3 furrows | 820 | 890 | |
| for 4 furrows | 1050 | 1120 | |
| for 5 furrows | 1165** | 1235** | |
| Lift requirement (kg) for 3 furrows | 1700 | 1800 | |
| for 4 furrows | 3100 | 3250 | |
| for 5 furrows | 3700 | 3850 | |
* steps of 5 cm
**available only in 85 cm interbody clearance
Technical specifications
Technical specifications
Download brochureModel |
Interbody clearance cm |
Head stock |
Type of beam |
Working width cm |
Under beam clearance cm |
no of furrows |
150 B |
85/100 |
150 |
Shearbolt |
30 - 50 |
80 |
3 - 5 |
* steps of 5 cm
**available only in 85 cm interbody clearance
