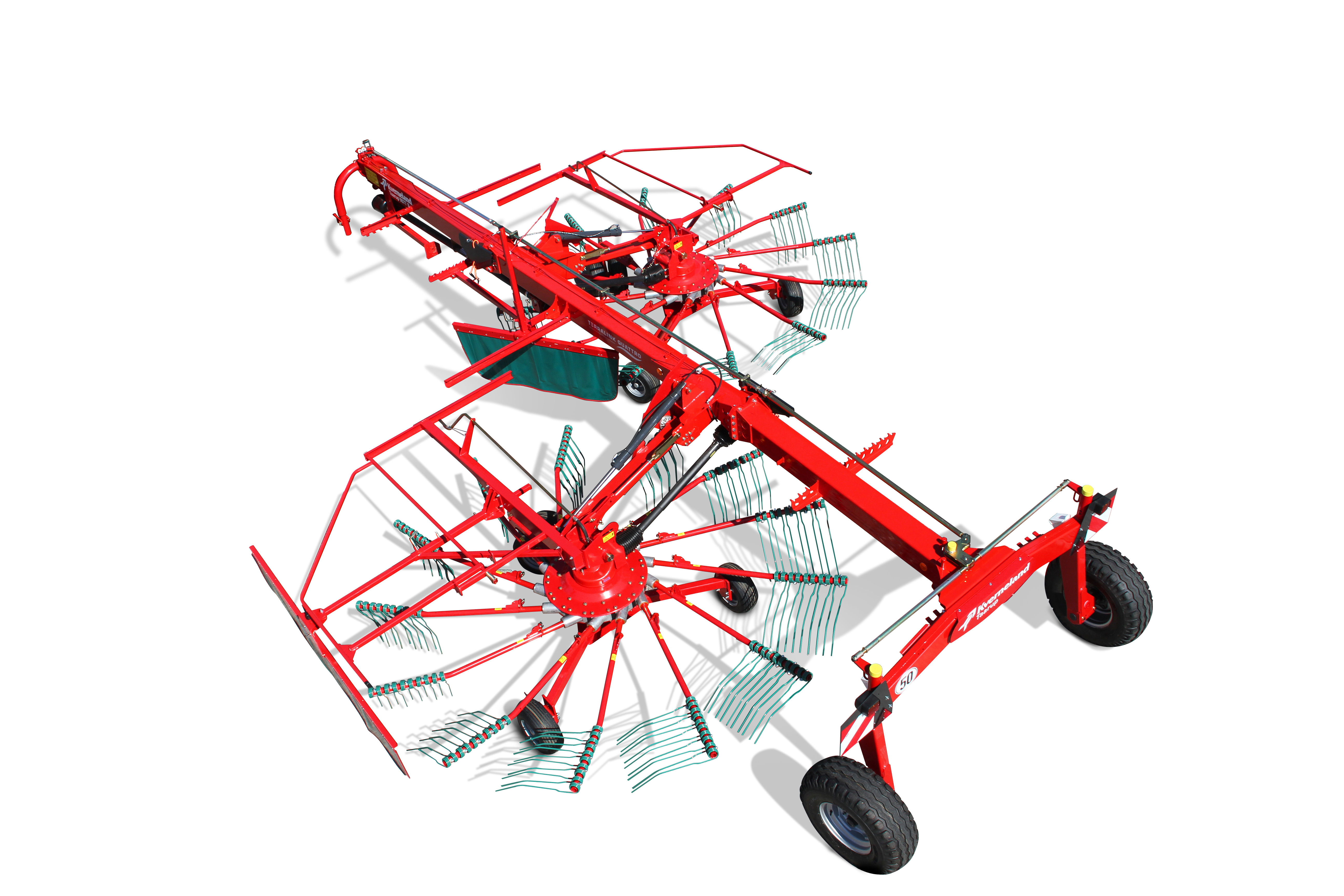

Kverneland 9577 S
Rake | Double rotor rake
TerraLink Quattro for perfect ground followings
ProLine multirotor side delivery rakes with 7.7m working width
The advantages of this Double rotor rake
- Maintenance-free rotor Head
- Front swath board standard on all machines
- 13 Arms and five tines on the rear rotor
- 380 mm wheels standard
Description

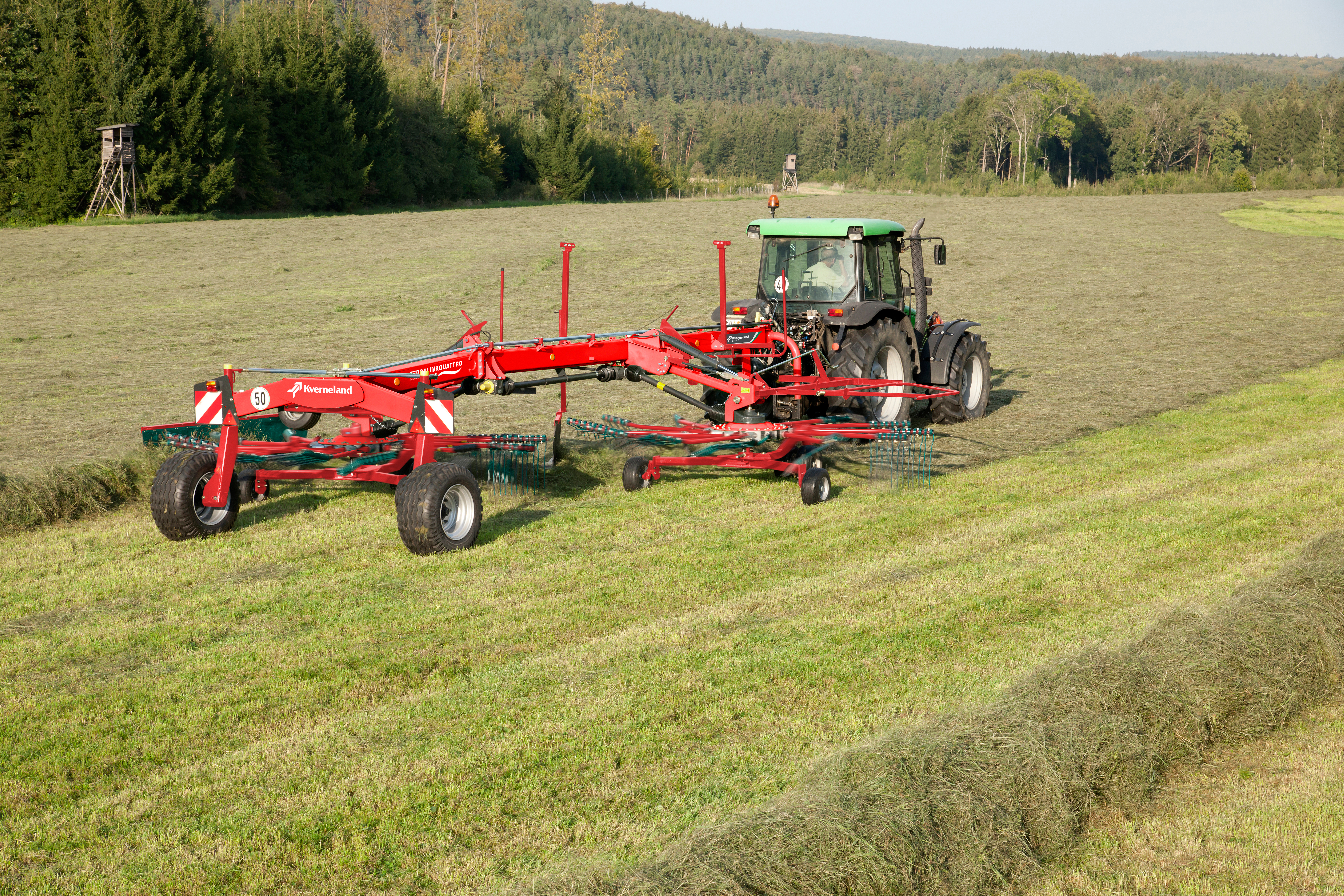

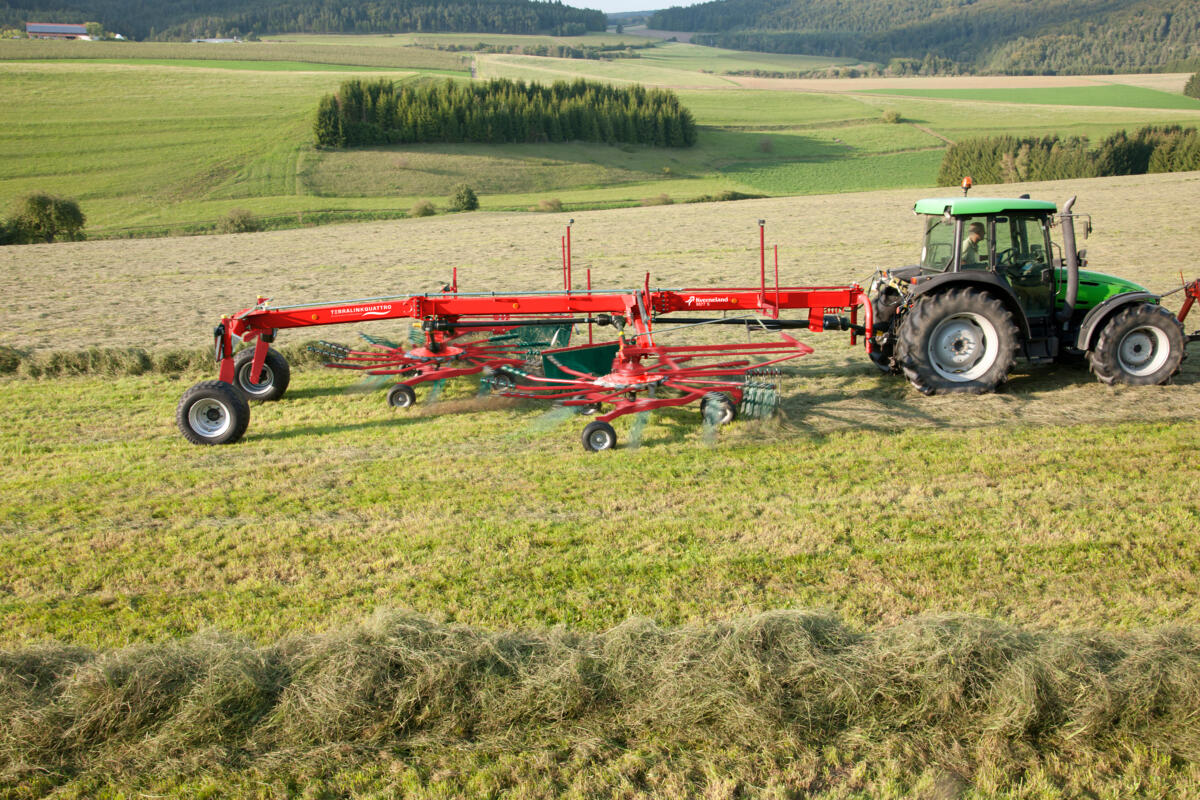

The Kverneland 9577 S –ProLine multirotor cost-effective rakes with 7.7m working width. The side delivery concept adds excellent flexibility in swath formation and allows you to collect crops from a working width of 15.00m into one swath. In addition, if crop volume is low, several passes can be raked into one row. 9577 S is fitted with the renowned ProLine gearbox, with its’ maintenance-free rotor head. 12 arms in the front and 13 in the rear secure perfect swath quality.
Features
Features
- The ProLine rakes feature a unique drive system which comprises oil-immersed pinion and crown wheels.
- The fully enclosed design ensures full and permanent lubrication, and makes the entire system absolutely maintenance-free.
- The hardened cam track is adjustable, and features a flat curve and an extremely large 400mm-diameter, providing positive guidance to the steel rollers, and promoting quiet machine running.
- Aluminium-bearing housings, with two integral ball bearings and wide support, provide solid and maintenance-free tine arm mounting.
- Kverneland rotary rakes are designed to do well-shaped and clean swaths, achieved with precision in every part of the raking.
- The ability to follow ground contours is important to avoid dirt in the swath - especially in uneven field conditions.
- The TerraLink Quattro system controls the rotor in 3 dimensions, with a unique combination of an undercarriage with 4 wheels and a specially designed rotor suspension system. This ensures superb raking performance, even at higher forward speeds.
- Maintenance-free system - no pivots or joints to wear out.
- Automatic rotor suspension, ensuring smooth operation.
- Built-in pressure bias on front wheels prevents lifting and tine bounce.
- Optimal ground following for clean raking at high forward speeds. All wheels are positioned close to the tines.
- The rear carrier frame with controlled steering facility allows tight turns on headlands and loss free swathing, even in awkwardly shaped fields.
- Even if the rotors are lifted on a steep slope, the steering system reliably counteracts any deviation.
- The ability to make sharp turns up to 80° and the cross stabilizer in the headstock are unique Kverneland features.
Technical specifications
Technical specifications
Download brochure| 9577 S | ||
|---|---|---|
| Working Width | 7.7m | |
| Tine Arms | 12/13 | |
| Weight (kg) | 2160 | |
| Rotor diameter (m) | 3.65 |
Technical specifications
Technical specifications
Download brochureWorking Width |
Tine Arms |
Weight |
|
9577 S |
7.70m |
12/13, 4/5 |
2160kg |
Product FAQ`s
Side delivery gives the operator more control over where the crop is placed. This helps match the swath to the next machine, improves pick-up efficiency and supports smoother harvesting in changing crop conditions.
The wide working width helps reduce the number of passes needed, allowing operators to cover more hectares in less time. This is especially valuable when harvesting windows are short and timing is critical.
The Kverneland 9577 S combines capacity, clean raking and simple side-delivery operation. It is designed to help customers save time in the field while preparing an even swath for efficient forage collection.
The Kverneland 9577 S is a strong fit for farmers who want more capacity from a side-delivery rake without adding complexity. It supports clean forage handling, reliable daily work and efficient use of tractor power.
The Kverneland 9577 S gives customers high daily output with a 7.70 m working width and flexible side delivery. It helps create clean, well-positioned swaths so the following harvesting machine can work efficiently and with less crop loss.
