Kverneland 8555
Tedder | 3pt mounted Tedder
Productivity at the core
Heavy duty mounted tedder with compact transport dimensions
The advantages of this 3pt mounted Tedder
- Maintenance-free in season, except PTO
- Strong driveline including HexaLink finger clutch
- Sturdy design - V-shaped central unit
- Central adjustment for border spreading
- Largely dimensioned oscillation dampers
Description

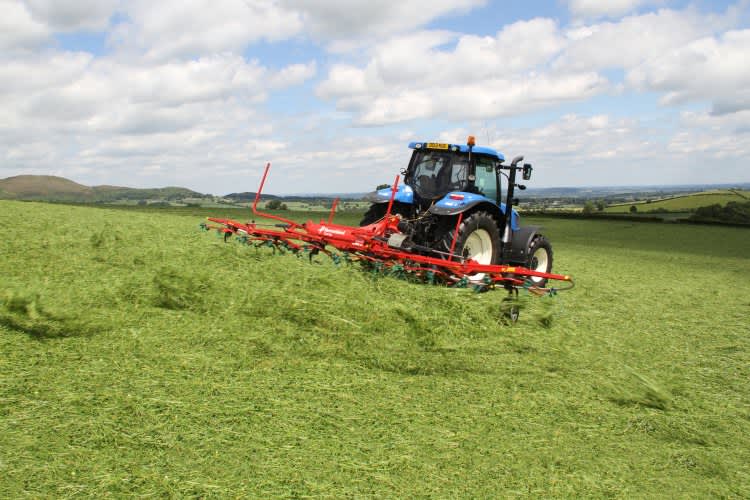

Kverneland 8555, with 5.5m working width, is designed to perform perfectly in all crop conditions, with a minimum of non-productive maintenance required and with diminished transport dimensions. Featuring a heavy-duty fully closed headstock this machine will fit perfectly into the operation of professional farmers, looking for a strong, effective, and versatile tedder.
Features
Features
Powered by a maintenance-free driveline and gearboxes, focus can be directed towards the essentials to maximise productivity. No time is wasted on time consuming greasing. Additionally the hinges are connected with strong maintenance-free roller bearings for extended longevity and stability of the connection points.

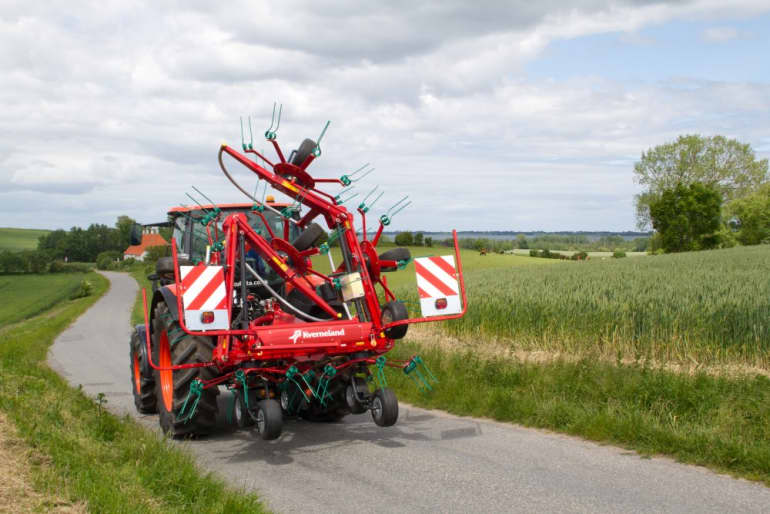

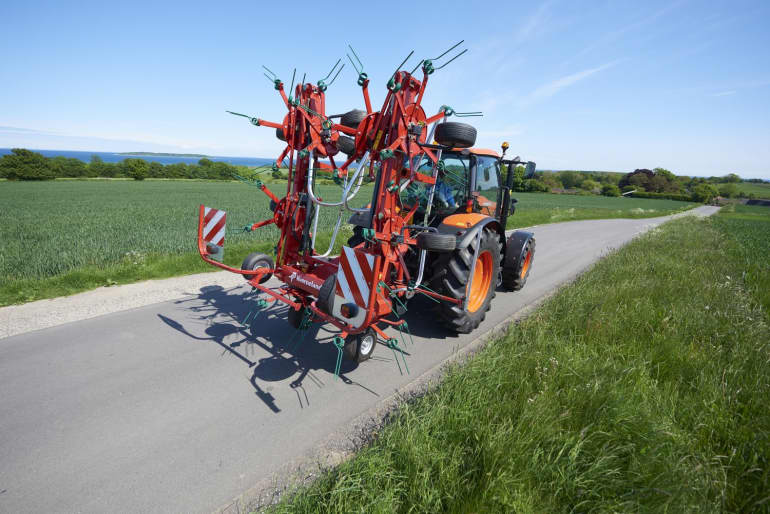

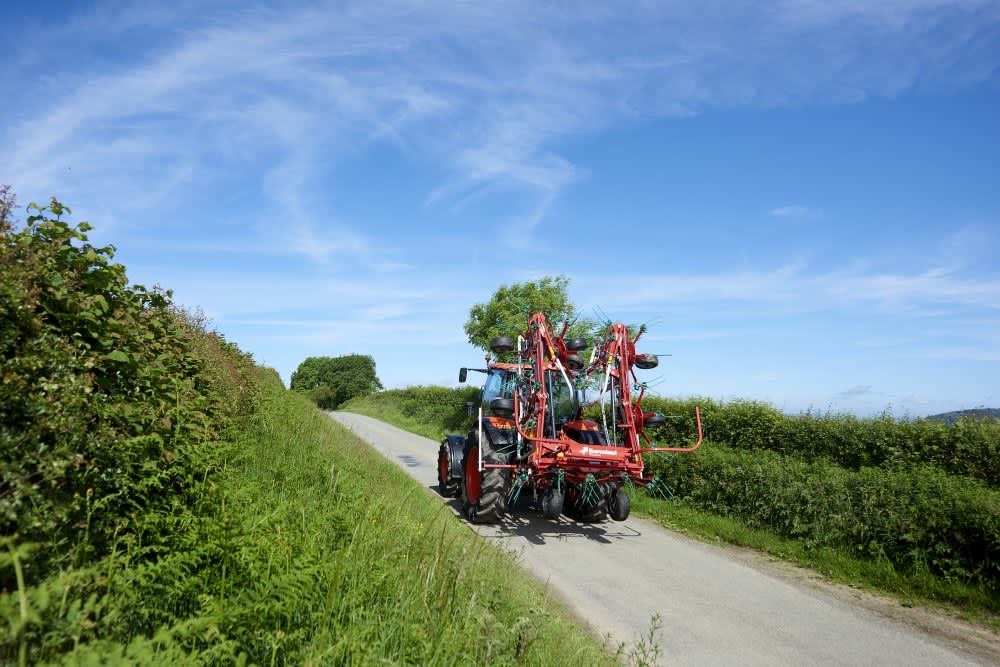

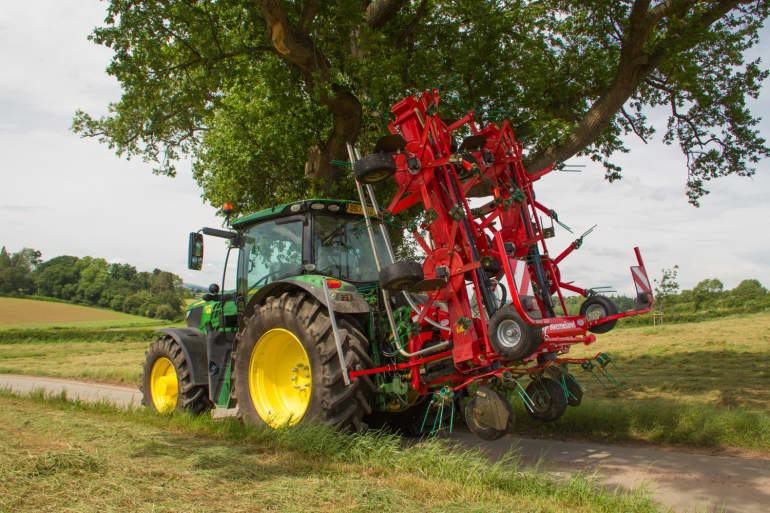

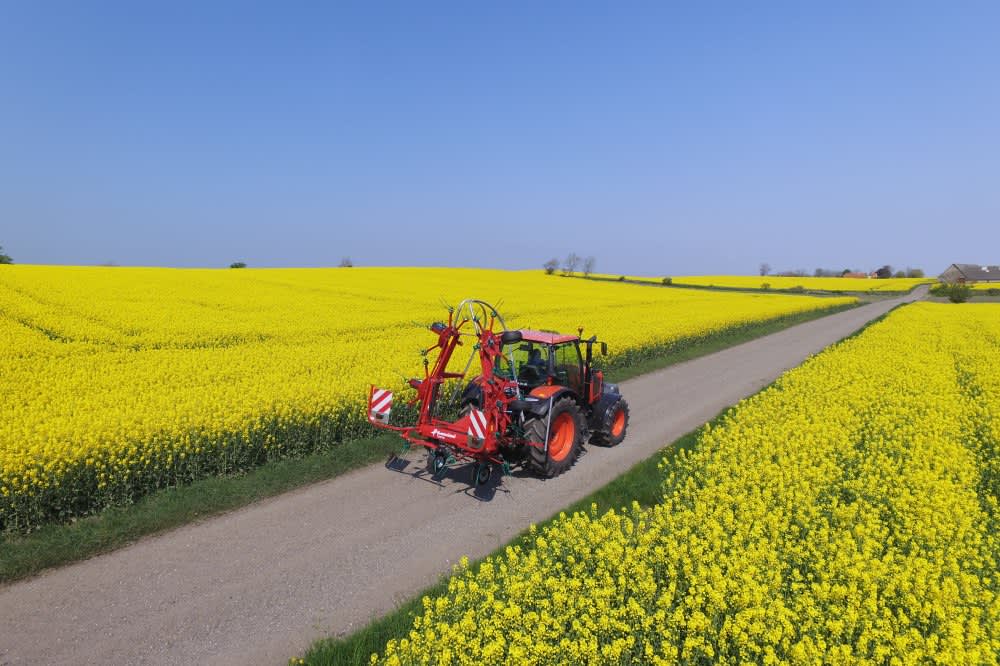

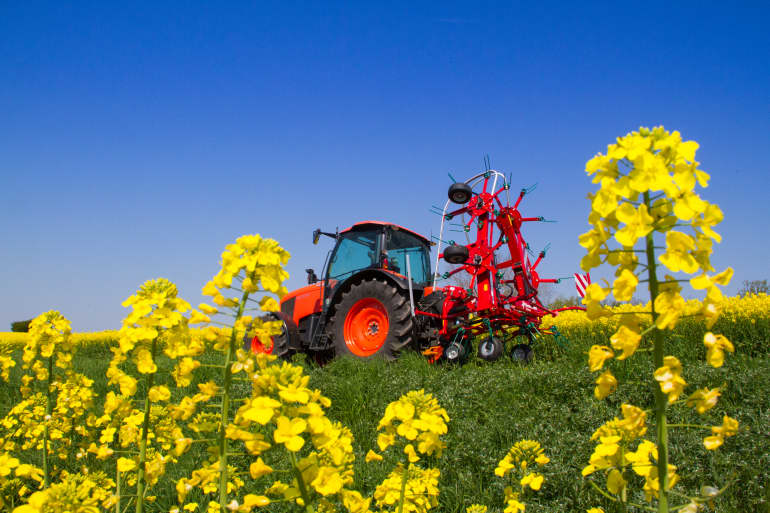

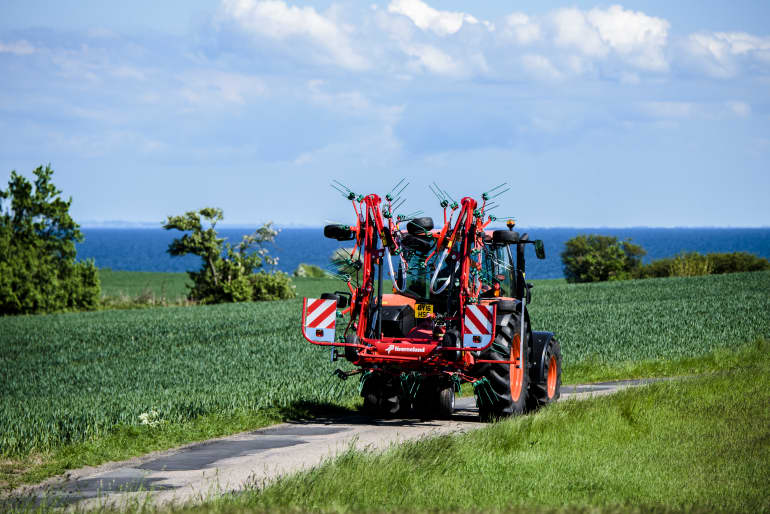

These machines offer very compact transport dimensions with their clever folding solution. A parking height below 4.0m is possible, due to the implementation of the new HexaLink finger clutch system in the joints of the two outer rotors. The remaining rotors are driven by maintenance-free double universal joints, for strong and efficient transfer of power.

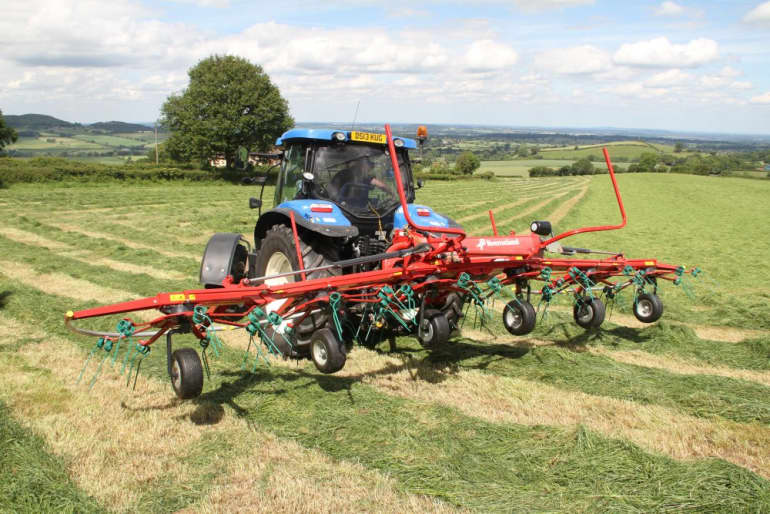

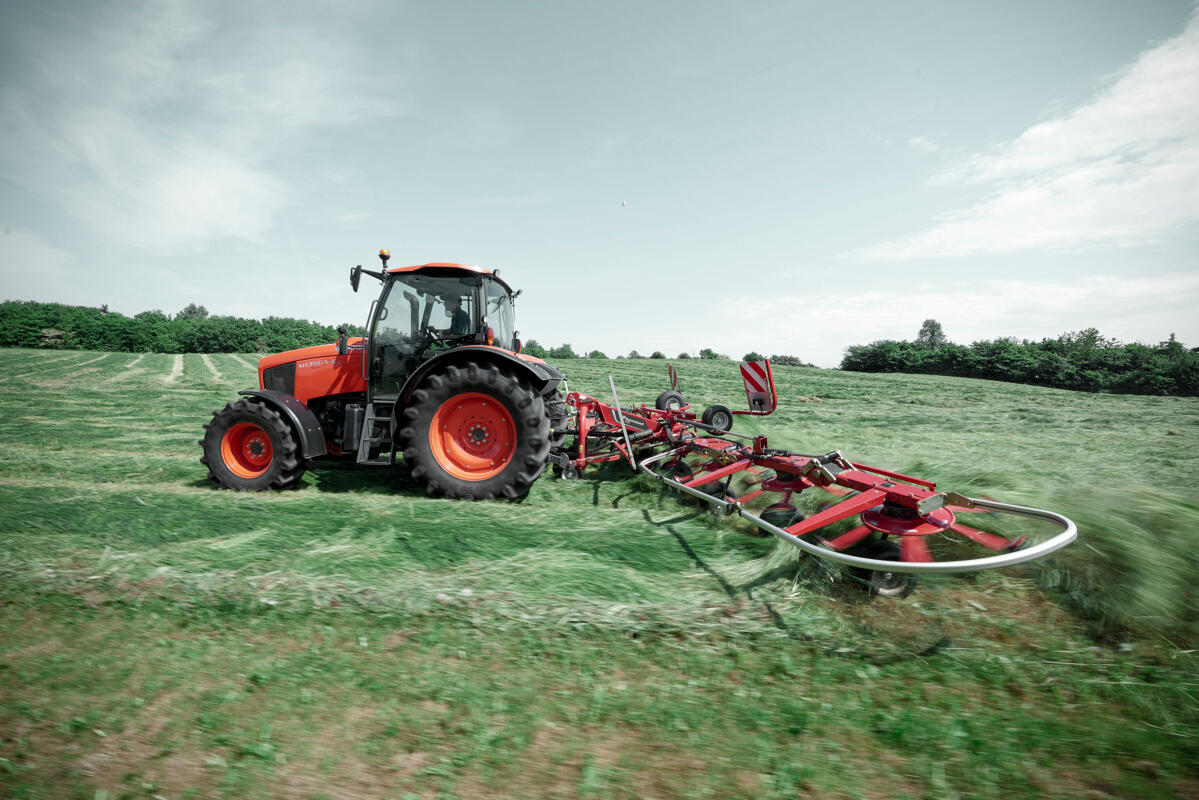

To increase productivity, the Kverneland tedders can be equipped with a mechanical or an optional hydraulic border tedding device (hydraulic headland kit). A marker cleverly shows the position of the axle.

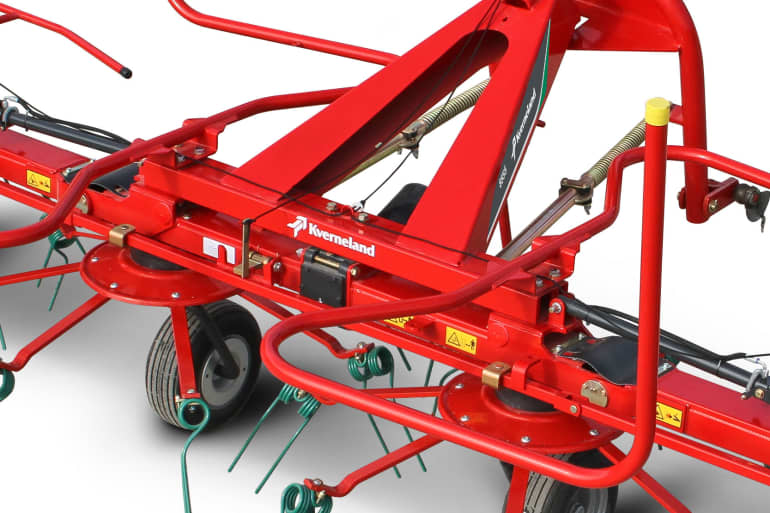

Kverneland's new generation of mounted tedders are designed to perform perfectly in all crop conditions, with a minimum of non-productive maintenance required. Featuring a heavy-duty fully closed headstock and a strong V-shaped central unit, the machine will fit perfectly into the operation of professional farmers, looking for a strong, effective, and versatile tedder.

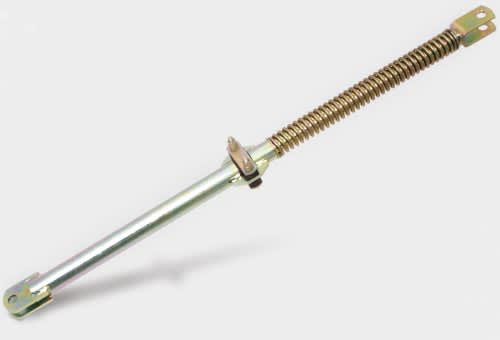

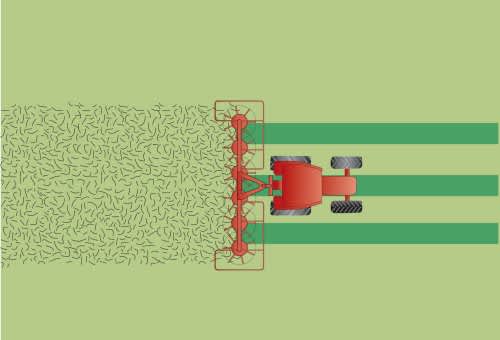

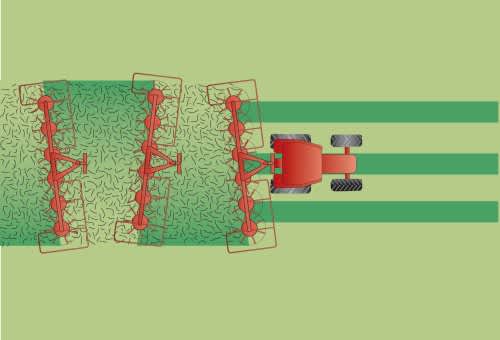

- Kverneland oscillation dampers ensure excellent ground contour following and tedder flotation.
- The construction of the oscillation dampers results in a smooth and even distribution of the grass, thanks to the constant tine distance from the ground.
- Widely spaced mounting points - no risk of ‘hunting’.
- Excellent running characteristics.
- Low-positioned linkage on the headstock, for more effective damping action during transport.
- No risk of the tedder running under the tractor on downhill work, excellent tedding at all times through constant tine spacing to the ground.
Technical specifications
Technical specifications
Download brochure| Model ProLine | 8555 | |
|---|---|---|
| Working width (m/ft) | 5.50 / (18’1”) | |
| Number of rotors | 4 | |
| Number of tines/rotor | 7 | |
| Transport width (m/ft) | 2.98 / (9’9”) | |
| Transport length (m/ft) | 2.30 / (7’7”) | |
| Storage height (m/ft) | 2.80 / (9’2”) | |
| Capacity theor. (ha/h) | 4.4 |
Technical specifications
Technical specifications
Download brochureWorking Width |
Rotors/Tines |
Weight |
|
8555 |
5.50m |
4/7 |
620kg |
8568 |
6.80m |
6/6 |
900kg |
8576 |
7.60m |
6/7 |
980kg |
8590 |
8.90m |
8/6 |
1260kg |
85112 |
11.20m |
10/6 |
1600kg |
Product FAQ`s
The Kverneland 8555 three-point-mounted tedder has a 5.50 m working width and a heavy-duty driveline. Tractor suitability also depends on PTO compatibility, three-point linkage, lift capacity, tractor weight, stability, tyres, and ballast. Ask your Kverneland dealer to confirm the correct tractor match.
The Kverneland 8555 three-point-mounted tedder has four rotors, a 5.50 m working width, and a published theoretical capacity of 4.4 ha/h. Suitability depends on acreage, crop volume, field shape, weather windows, tractor capacity, and the output of your mower, rake, baler, forage harvester, or loader wagon.
The Kverneland 8555 three-point-mounted tedder is designed to work in different crop conditions. Its oscillation dampers help maintain a consistent tine distance from the ground, supporting smooth and even grass distribution. Select the machine settings according to crop volume, moisture, terrain, and the required drying result, following the current Kverneland operator manual.
The Kverneland 8555 three-point-mounted tedder has a published theoretical capacity of 4.4 ha/h across its 5.50 m working width. Actual work rate depends on crop volume, terrain, field shape, forward speed, turning time, and operating conditions. Use the theoretical capacity for planning rather than as guaranteed field output.
The Kverneland 8555 three-point-mounted tedder has a 5.50 m working width and four rotors. Whether it matches your mower depends on mower width, swath placement, the number of swaths covered per pass, field layout, and required capacity. Compare the complete mowing, tedding, and raking pattern before selecting the tedder.
Set forward speed with the Kverneland 8555 three-point-mounted tedder according to crop volume, moisture, terrain, spreading quality, and forage cleanliness. The selected speed should maintain smooth, even crop distribution without unnecessary soil contamination or tine loading. Follow the current Kverneland operator manual for approved model-specific guidance.
The Kverneland 8555 three-point-mounted tedder has maintenance-free gearboxes, driveline joints, and hinge roller bearings during the season, while the PTO shaft still requires maintenance. Its enclosed, oil-immersed ProLine gearbox needs no daily lubrication. Follow the operator manual for PTO servicing, inspections, wear-part checks, and seasonal maintenance intervals.
