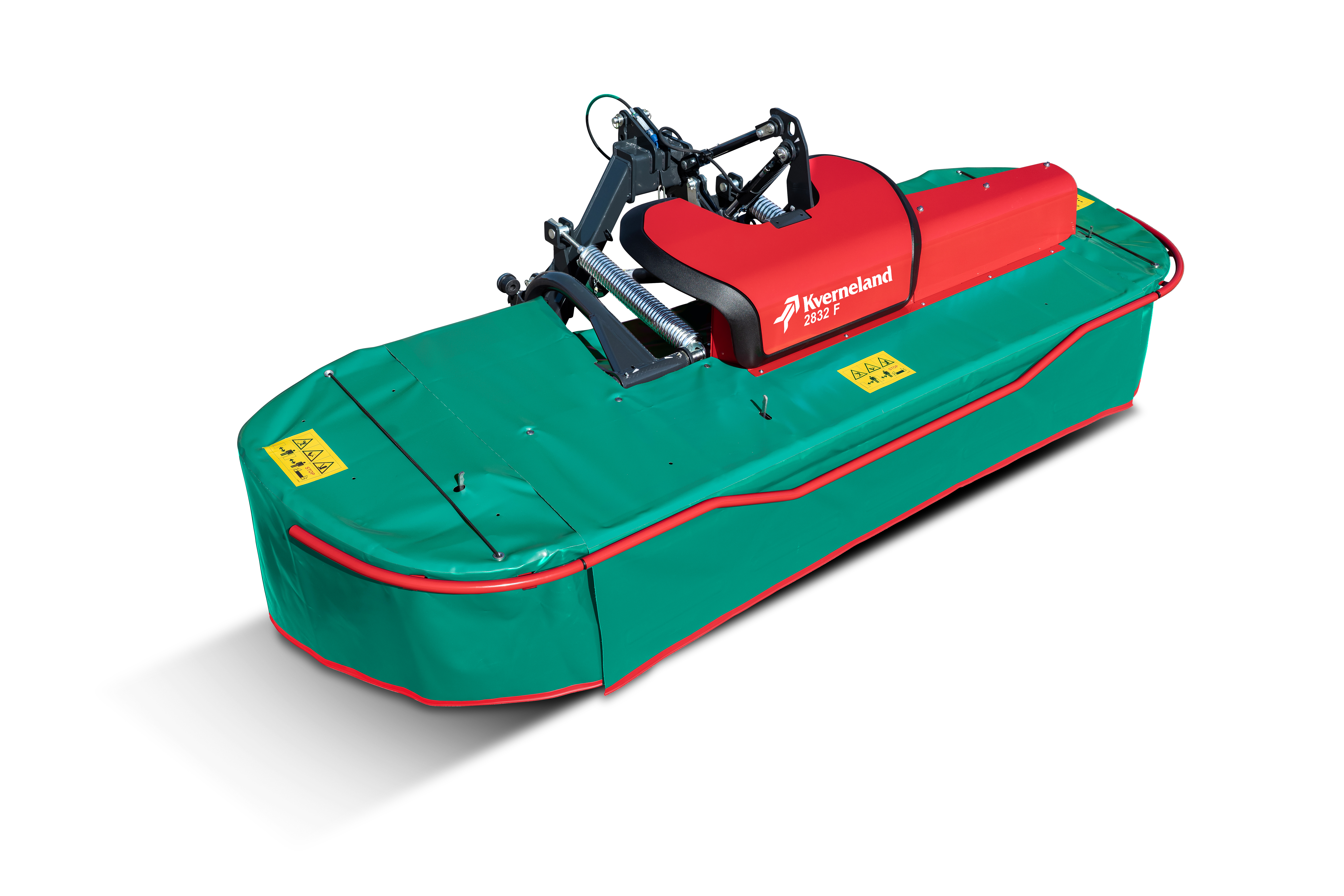

Kverneland 2800F
Mower | Plain mower
When looking for sophisticated performance
Front mounted plain disc mowers
The advantages of this Plain mower
- NonStop BreakBack solution
- Very flexible headstock
- Two-speed driveline 750/1000rpm
- Excellent ground adaptation
Description

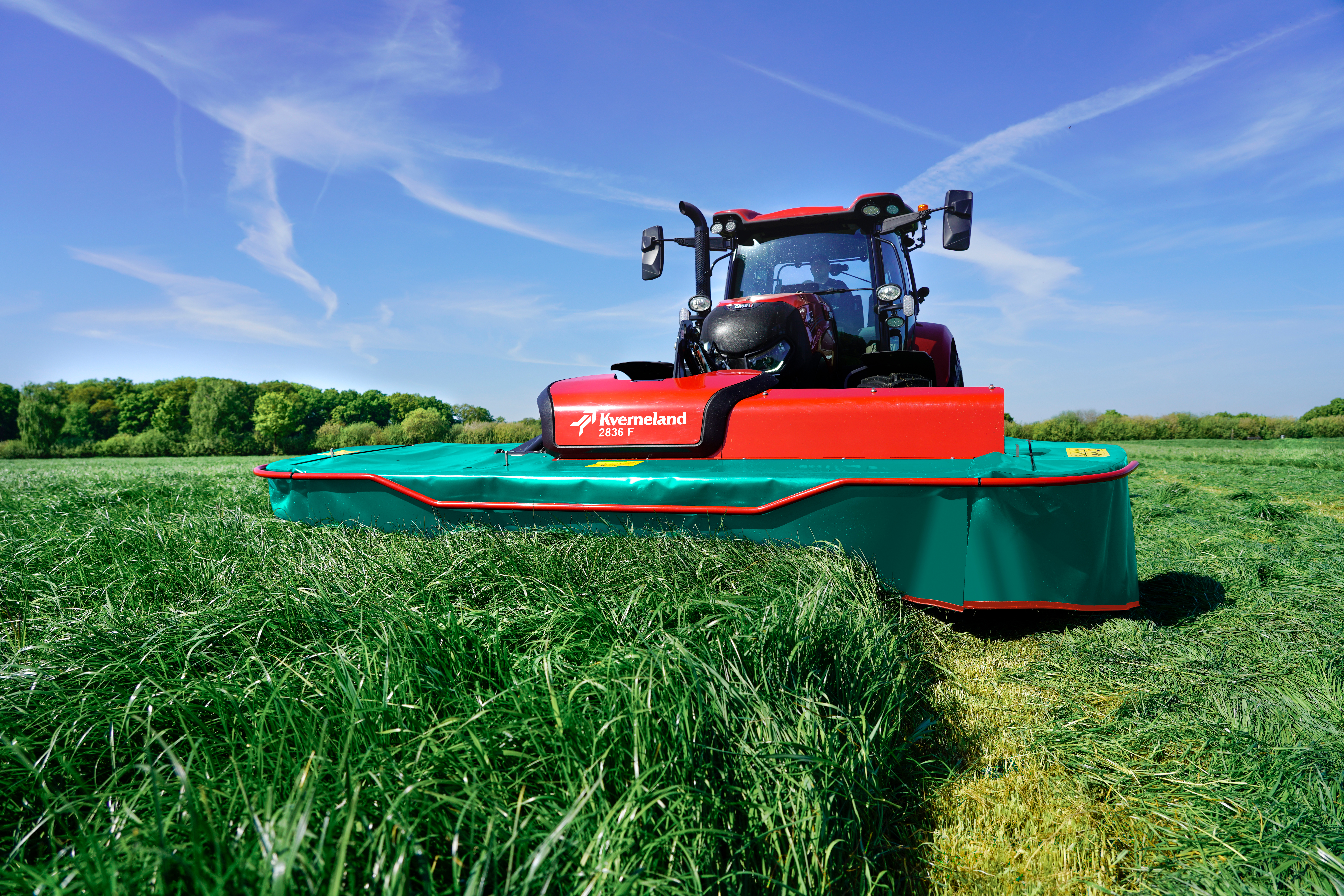

Kverneland 2800 F front mounted disc mowers, with 2.18 - 3.57m working width, is characterized by outstanding ground following ability, easy operation and low weight, leading to excellent cutting performance and ground following ability in all terrain. At standard settings the cutterbar has a remarkable 430mm upwards and 210mm downwards adaptation range, in combination with a transverse pivoting range of 17°. The design does not require a flexible front linkage, as the movement is built into the machine.
Features
Features
- Kverneland uses round discs. Round discs are less susceptible to stone impact, and reduce shock loads in the transmission.
- Stones are expelled immediately, before they have any chance of becoming jammed. The benefits are lower repair and maintenance costs - at the same time as a clean and aggressive cut.
- The cutterbar has a high oil capacity, ensuring a very low working temperature. This ensures an efficient oil cooling and lubrication of the entire cutterbar.
- The long curved gear wheels running in oil provides a very quiet and reliable power transmission.
- The fully welded cutterbar gives a very stiff and strong design for high durability.
- With the ProFit quick knife change system, maintenance of the cutting ability is easy. The knives are changed by one simple operation using the special lever.
- Standard PTO speed is 1000 rpm. However by simply switching driveline pulleys, 750 rpm for reduced fuel consumption can be achieved.
- This makes it possible to maintain the correct PTO speed, but using reduced engine revs, creating an opportunity for lower fuel consumption – an innovative solution to the problem of front PTO systems not offering an Economy speed.
- The 2800 F and 2800 FS machines are characterized by excellent cutting performance and ground following ability in all terrain. The design does not require a flexible front linkage, as the movement is build into the machine.
- To ensure best possible pattern of movement, the mowing unit moves independently from the front linkage.
- The mower design allows a transverse adaptation of up to 17°.
Technical specifications
Technical specifications
Download brochure| Model | 2828 F | 2832 F | 2836 F | |
|---|---|---|---|---|
| Working width (m/ft) | 2.81(9’3”) | 3.16(10’4”) | 3.57(11'6") | |
| Transport width (m) | <3.0 | 3.0 | 3.4 | |
| Linkage (CAT) | 2 | 2 | 2 | |
| PTO (rpm) | 750/1000 | 750/1000 | 750/1000 | |
| Min. power req. PTO output (kW/hp) | 26/35 | 29/40 | 37/50 | |
| Number of discs and knives | 7/14 | 8/16 |
Technical specifications
Technical specifications
Download brochureWorking Width |
No. of Discs |
Weight |
Power Requirements, min. |
|
2828 F |
2.81m |
7 |
670kg |
26/35 kW/hp |
2832 F |
3.16m |
8 |
710kg |
29/40 kW/hp |
Product FAQ`s
The Kverneland 2800 F series front-mounted plain mower requires at least 35 hp for the 2828 F, 40 hp for the 2832 F, and 50 hp for the 2836 F, based on current international specifications. All models use Category 2 linkage and support 750 or 1,000 PTO rpm. Confirm the applicable market specification with your Kverneland dealer.
Choose the 2.81 m Kverneland 2828 F, 3.16 m 2832 F, or 3.57 m 2836 F. The right Kverneland 2800 F series front-mounted plain mower depends on tractor capacity, field access, workload, transport restrictions, and rear-mower compatibility. The wider 2836 F also provides additional overlap in butterfly combinations.
The Kverneland 2800 F series front-mounted plain mower cuts forage without tine or roller conditioning. When comparing it with a mower conditioner, consider crop type, drying conditions, weather windows, tractor power, and whether your harvesting system includes a tedder or other crop-spreading equipment.
The Kverneland 2800 F series front-mounted plain mower can serve as the tractor’s primary mower or work in a front-and-rear combination. Choose the 2.81, 3.16, or 3.57 m width according to tractor capacity and required output. Confirm front-linkage capacity, PTO compatibility, axle loads, tyres, and ballast before operation.
The Kverneland 2800 F series front-mounted plain mower is designed for use with rear-mounted and butterfly mower combinations. The correct rear mower depends on front width, required overlap, tractor power, linkage and PTO capacity, hydraulics, axle loads, and transport dimensions. Ask your Kverneland dealer to confirm an approved complete combination.
Yes. The Kverneland 2800 F series front-mounted plain mower has a two-speed driveline for 750 or 1,000 PTO rpm. The standard setting is 1,000 rpm. The 750 rpm setting can be selected by switching the driveline pulleys, allowing operation at reduced engine speed where appropriate.
