Kverneland DTX

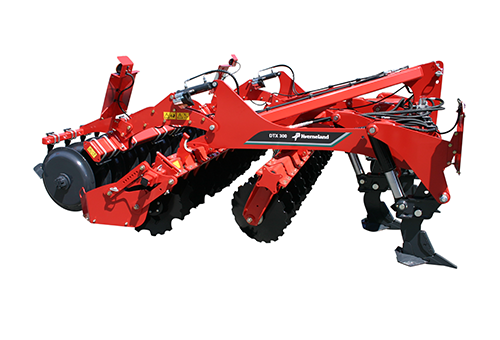

DTX the one-pass stubble incorporator and soil loosener
As a result of growing farms and shorter weather periods, time has become a valuable factor. Therefore, the DTX combines different operations in one pass. Designed as a mounted one-pass stubble incorporator/soil loosener for tractors in the 200-350hp range, the DTX is extremely versatile.
Highlights
Long durability Low power requirement Improved trash flow & deep loosening up to 40cm Respecting the soil structure Subsoiling & seeding in one pass with the a-drillDescription
Designed as a mounted one-pass stubble incorporator/soil loosener for tractors in the 200-350hp range, the DTX is extremely versatile. It can be used for first entry with non-inversion tillage or to knock down ploughing whilst loosening down to 40cm.
It is also ideally suited to establish oilseed rape straight into stubble as one pass operation in combination with the a-drill as it leaves a very levelled, fine and consolidated seedbed. The DTX also offers very good trash clearance. The front tines are staggered and the rear discs allow a full cut and mix from 2 to 10cm deep.
Features
Pro-lift tines
The Pro-Lift tine and point provide a very effective soil conditioning action with prolonged wear rates. The DTX proposes 2 different tine options: shear-bolt or autoreset
version. On models with hydraulic auto-reset, the point pressure can easily be adjusted from 1700kg to 2925kg for the hardest soils.
Low Disturbance tines (LD)
LD (Low Disturbance) tines reduce the impact on the different layers without smearing at depth. The soil flow closes directly behind the tine. The tip is protected by carbide to extend the life time.
Effective consolidation plays a key role in combating the problem of compaction, which is a barrier to root growth and water infiltration and a major factor in poor soil structure leading to run-off and erosion.
Double Disc DD Roller - ø 600mm
- Positive depth control
- High quality corrugated for a weatherproof surface
- Heavy-duty scrapers and sealed-for-life ‘non-grease’ bearings
Actipack ø560mm - 205 kg/m
- Especially on medium to heavy soils
- Suitable also for wet, stony and sticky conditions thanks to the independent skids and knives
- Optimal clod breakdown and fine seedbed preparation by the cutting discs and adjustable knives
Actipress Twin ø560mm - 220kg/m
- U-profile for high carrying /rolling capacity on light soils
- Clod breaking also in heavy conditions
- Possibility to make different soil profiles by locking the rocking (even or corrogated)
- Self-cleaning effect thanks to the twin u-ring concept
- High stability thanks to the oscillating frame
- High and homogenous consolidation
- Can also work in stony conditions
- Weight/m when full of soil : 250 kg/m
Technical specifications
Technical specifications
Download brochure| Model | DTX 300 SB** | DTX 300 AR** | |
|---|---|---|---|
| Frame | mounted rigid | mounted rigid | |
| Working width (m) | 3.00 | 3.00 | |
| Transport width (m) | 3.00 | 3.00 | |
| Underbeam clearance (mm) | 550 | 550 | |
| Frame size (mm) | 180 x 180 x 10 | 180 x 180 x 10 | |
| Tine | Pro-Lift or LD | Pro-Lift or LD | |
| Number of tines | 5 | 5 | |
| Tine spacing (cm) | 60 | 60 | |
| Max. working depth (cm) | 40 | 40 | |
| Tine overload protection | shear bolt | hydraulic auto-reset | |
| Max. release force (kg) | 4,400 | 1,740 - 2,900 | |
| Rear roller | DD600 / Actipack / Actipress Twin | DD600 / Actipack / Actipress Twin | |
| Combination with a-drill 200/500 | Option | Option | |
| Disc section with standard discs | Standard | Standard | |
| Disc section with big notched discs | Option | Option | |
| Disc section with standard in front & big notched discs in back | Option | Option | |
| Rear finger harrow | Option | Option | |
| Average power requirement (HP) | 200-300 | 200-300 | |
| Max. power requirement (HP) | 350 | 350 | |
| Weight (kg)* | 2,750 | 2,970 |
* Weights are given as an indication.
** SB = Shear bolt; AR = Auto-reset
