Kverneland FRD
Versatility combined with efficiency

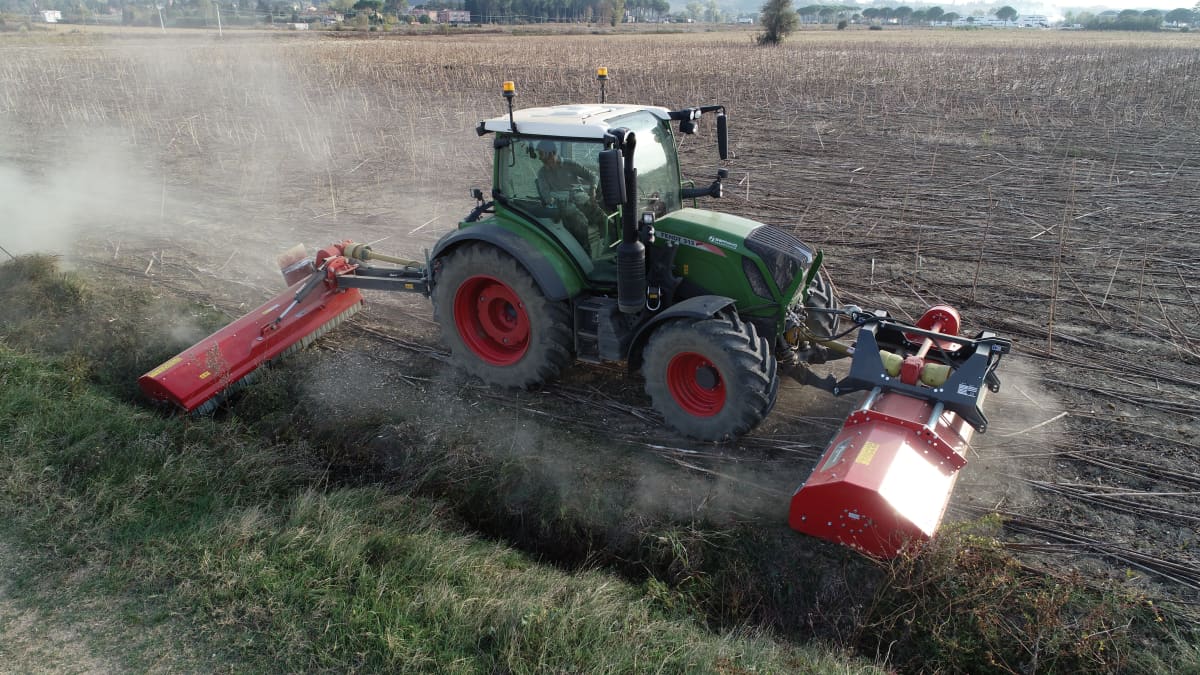

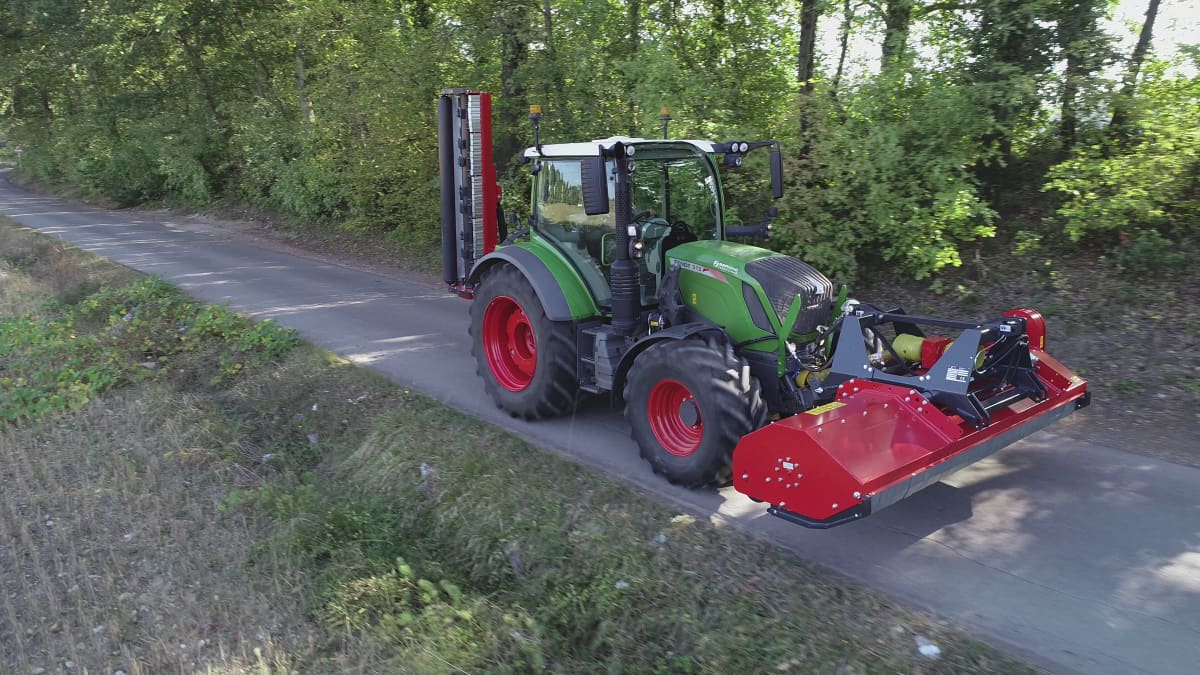

Versatile machine for front and rear tractor mounting
Highlights
For tractors up to 160hp Front and rear tractor mounting Easy operation in the field by hydraulic offset High-performance rotor for high-quality cutting Low maintenance costsDescription

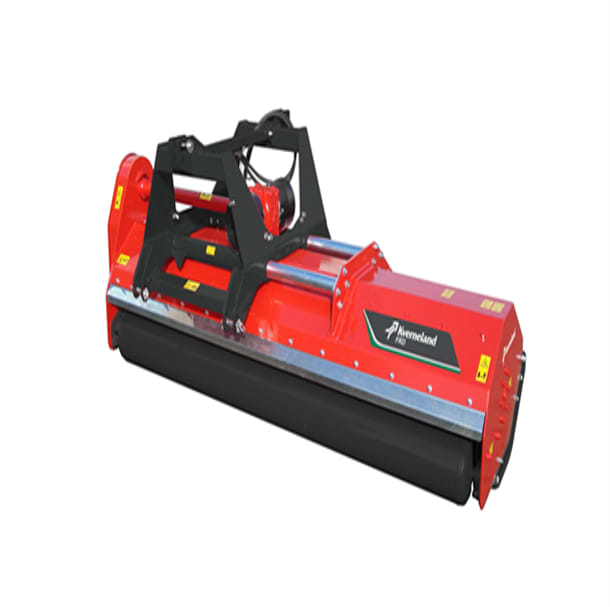

The FRD is a versatile machine suitable for front and rear tractor mounting. The headstock is taken from the well-known and proven power harrow design. The sliding tube is integrated into the headstock; all forces and stress are concentrated on the 3-point linkage. The FRD is fitted as standard with a hydraulic-operated offset facility of 52cm. A central gearbox rated up to 160 hp with the double integrated freewheel is standard. The PTO tractor input can be 540 or 1000rpm, achieved by inverting the belt pulleys. Five V-belts combined with an automatic belt tensioner ensure smooth transmission, preventing slippage even in the toughest working conditions. No maintenance is required.
Technical specifications
Technical specifications
Download brochure| FRD | FRD | ||
|---|---|---|---|
| Working width (cm) | 280 | 320 | |
| Transport width (cm) | 300 | 345 | |
| No.of blades (univ /hammer) | 72/36 | 80/40 | |
| Weight (kg) | 1220 | 1380 | |
Multipurpose choppers
Technical specifications
Technical specifications
Download brochureModel |
Working Width (cm) |
Weight (kg) |
No. of universal/hammer blades |
FRD 280 |
280 |
1220 |
72/36 |
FRD 320 |
320 |
1380 |
80/40 |
