Kverneland 8480
Tedder | 3pt mounted Tedder
The hay making tedder
Compact tedder - ideal for hay making
The advantages of this 3pt mounted Tedder
- Low maintenance CompactLine gearbox
- Standard fitted with vibration dampers
- Rotor plate dimension of 500mm
- Double bearings from pinion to crown wheel
- Easy setting of spreading angle
Description

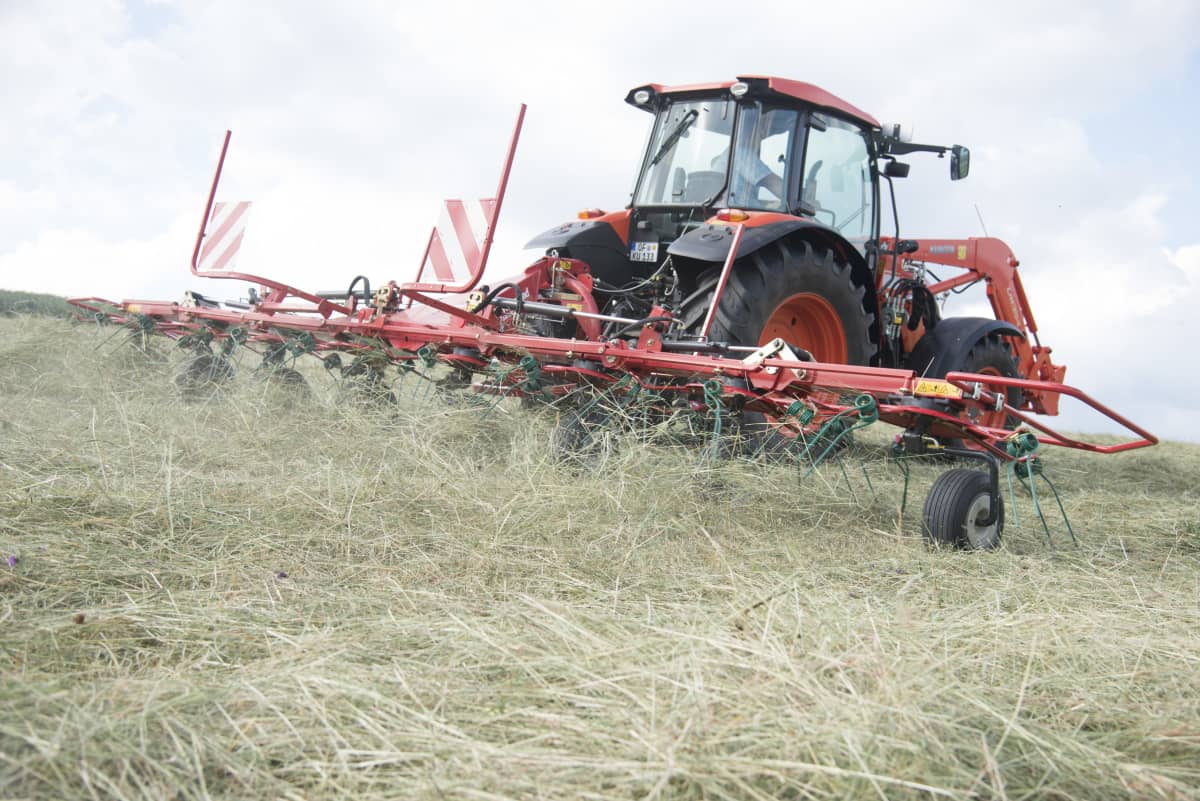

Kverneland 8480, with 8.05m working width, is purpose built for hay making. It comes with a strong package of features such as standard vibration dampers, strong V-shaped central unit and central adjustment for border tedding. It offers considerable operation capabilities with the combination of 8 rotors and 8.05m working width. The small rotors are specifically designed for optimized performance while producing dry hay.
Highlights
- Low maintenance CompactLine gearbox with only one grease nipple.
- Compact tedder with low weight and power requirements.
- Standard fitted with vibration dampers and strong central unit.
- HexaLink driveline ensures compact folding.
- Rotor plate dimension of 500mm
- Double bearings from pinion to crown wheel guarantee maximum longevity of the driveline.
- Easy setting of spreading angle through simple three-way adjustment of wheel height.
- Optional headland kit for easy lifting on headlands
Features
Features
Kverneland 8480 wit Compact Transport Width
- Despite its´ 8.00m working width the Kverneland 8480 will fold into a very compact unit for transport, and will go below 3.00m transport width.
- The two outer rotors are fitted with the new HexaLink finger clutch, a simple yet efficient drive system that permits these rotors to turn into a 180⁰ position for transport. The remaining rotors are driven by double universals joint, providing sturdy and efficient transfer of power
Technical specifications
Technical specifications
Download brochure| Model CompactLine | 8480 | |
|---|---|---|
| Working width (m/ft) | 8.05 / (26’5”) | |
| Number of rotors | 8 | |
| Number of tines/rotor | 5 | |
| Transport width (m/ft) | 2.90 / (9’6”) | |
| Transport length (m/ft) | 1.90 / (6’23”) | |
| Storage height (m/ft) | 3.15 / (10’33”) | |
| Capacity theor. (ha/h) | 6.4 |
Technical specifications
Technical specifications
Download brochureModel |
Working Width |
Rotors/Tines |
Weight |
8460 |
6.05m |
6/5 |
680kg |
8480 |
8.05m |
8/5 |
950kg |
Product FAQ`s
The Kverneland 8480 three-point-mounted tedder combines a low-weight design with low power requirements. Tractor suitability also depends on PTO compatibility, three-point lift capacity, tractor weight, stability, tyres, and ballast. Ask your Kverneland dealer to confirm the correct tractor match.
The Kverneland 8480 three-point-mounted tedder combines eight rotors with an 8.05 m working width. Choose it when the additional capacity suits your acreage, mower output, tractor, fields, and weather windows. A six-rotor tedder may require less storage and lifting capacity, so compare the complete forage system and transport requirements before deciding.
Yes. The Kverneland 8480 three-point-mounted tedder is purpose-built for haymaking. Its eight compact rotors and generous overlap are designed for efficient work in dry crops. The adjustable spreading angle helps distribute mower swaths evenly and supports faster drying. Select the spreading angle according to crop and field conditions.
The Kverneland 8480 three-point-mounted tedder has a published theoretical capacity of 6.4 ha/h across its 8.05 m working width. Actual work rate depends on crop volume, terrain, field shape, forward speed, turning time, and operating conditions. Use the theoretical figure for planning rather than as guaranteed field output.
The Kverneland 8480 three-point-mounted tedder has an 8.05 m working width and eight rotors. Whether it matches your mower depends on mower width, swath placement, the number of swaths covered per pass, field layout, and required capacity. Compare the complete mowing, tedding, and raking pattern before selecting the tedder.
The Kverneland 8480 three-point-mounted tedder has two vibration dampers and a strong V-shaped central frame. Together, these features support stable and accurate running during field operation and manoeuvring. Tractor setup, ballast, tyres, terrain, and safe operating practices remain important for the stability of the complete tractor-tedder combination.
