Kverneland 85134 C

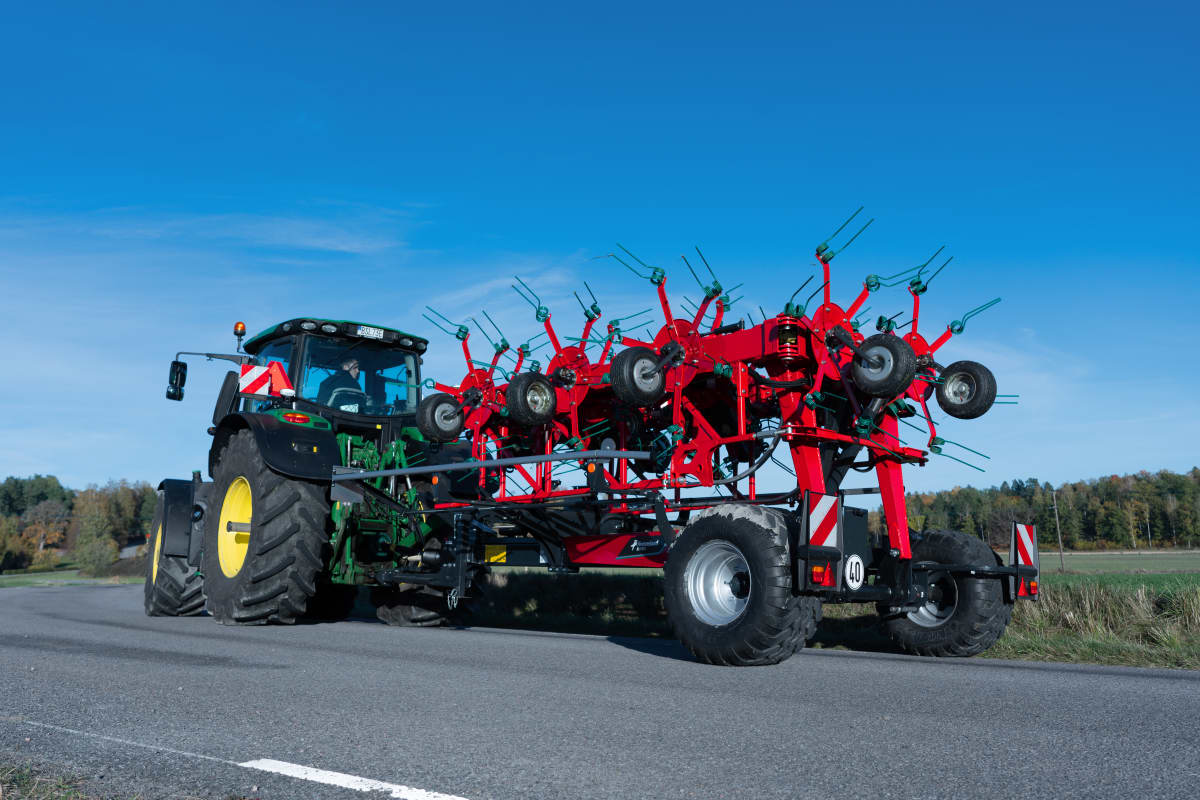

• These tedders fold into a transport width below 3m and is driven like a trailer on road smoothly following behind the tractor.
• To connect the machine 40 and 50 mm towing eyes are available as well as a K80 ball coupling. The machine can be connected in high or low position of drawbar.

• The ProLine gearbox is a strong and reliable construction, and is not fitted to the mainframe.
• Shock-protected: The enclosed system is not affected by chassis or tine arm vibrations.
• Constant lubrication: Enclosed and oil-immersed, the gearbox components enjoy extended longevity over systems that require manual lubrication.
• Reduced maintenance: There is no need for daily lubrication.
• Environmental protection: No lubrication means no leakage - hence higher-quality forage.
• No corrosion: No ingress of dust and water, not even during pressure washing.

• The Super-C tine can be locked in three positions to customize the pickup angle to different conditions. For heavy silages the angle can be set more aggressive and for fragile crop a gentler angle can be chosen.
• Made from flat steel, the tine arms form a very compact unit with the rotor plate and utilize the force of the rotor plate for higher durability of the time arm. This makes a Kverneland tine arm by far more resistant to any type of load.
• Super-C tine with symmetric spring tines ensures efficient pick-up and turning of the crop. Tines with same lengths has the added advantage that load is spread evenly on both tines, providing longer life time.
• Made from 10mm shot-peened spring steel and a coil diameter of 80mm, Super-C tines add up to the most durable and flexible tine in the market.

• High-quality forage allows the optimum spreading angle to be achieved according to crop conditions, helping you to produce high quality forage.
• Setting the rotors to the right spreading angle will considerably improve the spreading action, and speed up the drying process.
• The mower swaths are neatly lifted by the tines and evenly spread over the full width.
• Tines glide in a more uniform frequency over the stubble, so the risk of dirt being lifted by the tines is minimized.

Powered by a maintenance-free driveline and gearboxes, focus can be directed towards the essentials to maximise productivity. No time is wasted on time consuming greasing. Additionally the hinges are connected with strong maintenance-free roller bearings for extended longevity and stability of the connection points.
